MLK1005S5N6ST000

固定电感器

固定器

得捷:
FIXED IND 5.6NH 400MA 300MOHM SM

贸泽:
固定电感器 5.6 NH +-.3NH

艾睿:

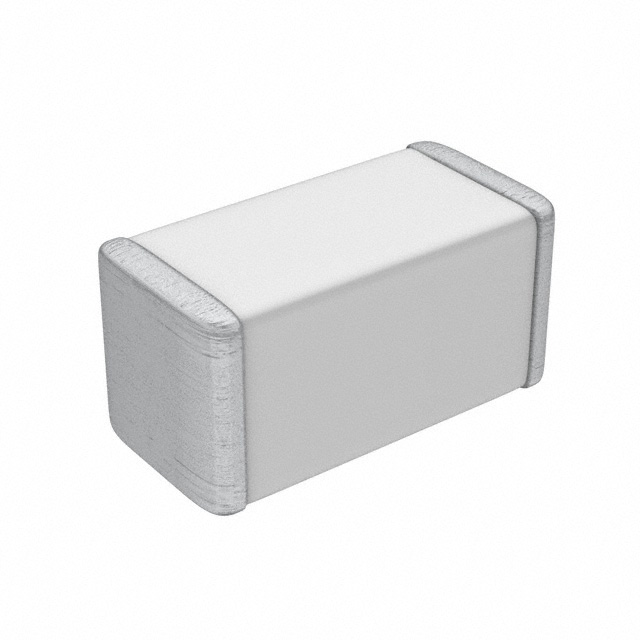

Use this rf chip MLK1005S5N6ST000 surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5.7G Hz. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. It has an inductance of 5.6n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 300m Ohm. This device utilizes multi-layer technology.

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.0056uH 0.3nH 100MHz 7Q-Factor Ceramic 0.4A 0.3Ohm DCR 0402 T/R

Electro Sonic:
Inductor RF Chip Unshielded Multi-Layer 5.6nH 0.3nH 100MHz 7Q-Factor Ceramic 400mA 300mOhm DCR 0402 T/R

Win Source:
5.6nH Unshielded Multilayer Inductor 400mA 300 mOhm Max 0402 1005 Metric
