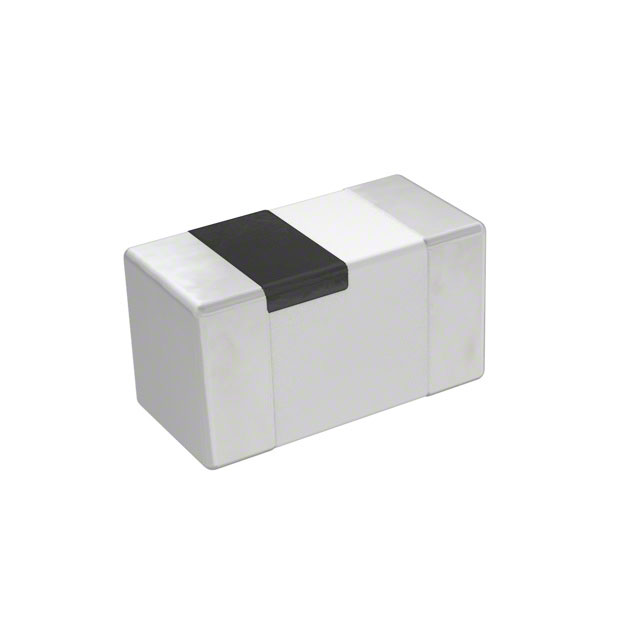

MLG1005S68NJT000

固定电感器

固定器

得捷:
FIXED IND 68NH 200MA 1.5 OHM SMD

立创商城:
68nH ±5% 870mΩ

贸泽:
Fixed Inductors 68 NH 5%

艾睿:
Use this high frequency chip MLG1005S68NJT000 surface mount inductor from TDK to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 800M Hz. It has a tolerance of 5%. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 1.5 Ohm. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. It has an inductance of 68n H.

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.068uH 5% 100MHz 8Q-Factor Ceramic 0.2A 1.5Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 68nH 5% 100MHz 8Q-Factor Ceramic 200mA 1.5Ohm DCR 0402 T/R

Win Source:
68nH Unshielded Multilayer Inductor 200mA 1.5 Ohm Max 0402 1005 Metric
