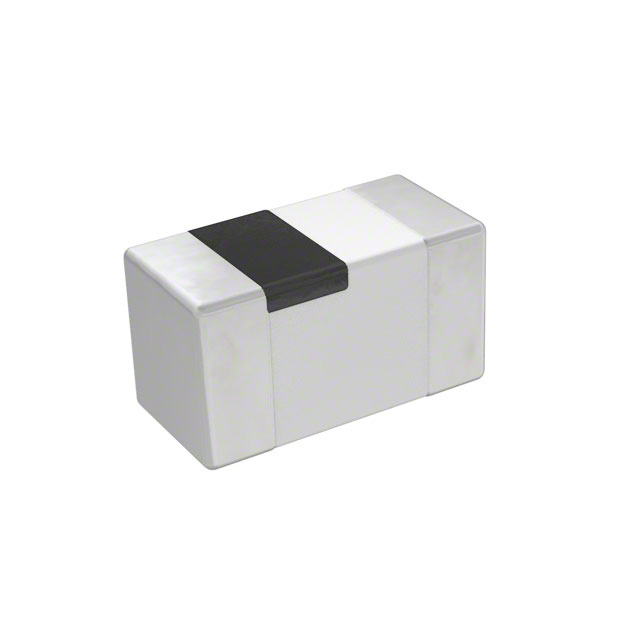

MLG1005S12NJT000

贴片高频电感

固定器

立创商城:
12nH ±5% 250mΩ

得捷:
FIXED IND 12NH 400MA 400MOHM SMD

贸泽:
固定电感器 .012 UH 5%

艾睿:
This high frequency chip MLG1005S12NJT000 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This device is made with multi-layer technology. It has a tolerance of 5%. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. It has an inductance of 12n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 400m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.5G Hz.

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.012uH 5% 100MHz 8Q-Factor Ceramic 0.4A 0.4Ohm DCR 0402 T/R

Electro Sonic:
Inductor High Frequency Chip Unshielded Multi-Layer 12nH 5% 100MHz 8Q-Factor Ceramic 400mA 400mOhm DCR 0402 T/R

Win Source:
FIXED IND 12NH 400MA 400 MOHM
