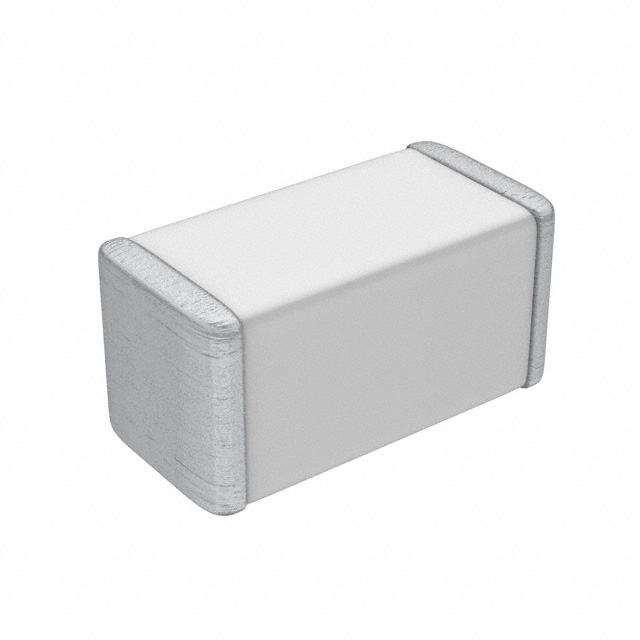

MLK1005S15NJT000

贴片高频电感

固定器

得捷:
FIXED IND 15NH 300MA 500MOHM SMD

立创商城:
15nH ±5% 330mΩ

贸泽:
Fixed Inductors 15 NH 5%

艾睿:
This rf chip MLK1005S15NJT000 surface mount inductor from TDK is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device utilizes multi-layer technology. It has a tolerance of 5%. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4G Hz. It has an inductance of 15n H. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 500m Ohm.

安富利:
Ind RF Chip Unshielded Multi-Layer 15nH 5% 100MHz 7Q-Factor 300mA 0402 Punched Paper T/R

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.015uH 5% 100MHz 7Q-Factor Ceramic 0.3A 0.5Ohm DCR 0402 T/R

Electro Sonic:
Inductor RF Chip Unshielded Multi-Layer 15nH 5% 100MHz 7Q-Factor Ceramic 300mA 500mOhm DCR 0402 T/R

Win Source:
15nH Unshielded Multilayer Inductor 300mA 500 mOhm Max 0402 1005 Metric
