贴片高频电感
固定器
立创商城:
22nH ±5% 460mΩ
得捷:
FIXED IND 22NH 350MA 700MOHM SMD
艾睿:

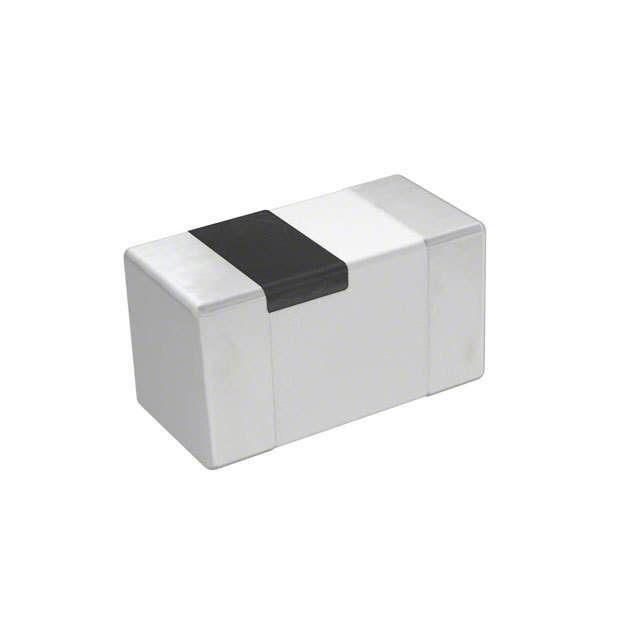

This high frequency chip MLG1005S22NJT000 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.7G Hz. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 350m A with a maximum resistance of 700m Ohm. It has an inductance of 22n H. This device is made with multi-layer technology. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep.
安富利:
MLG1005S22NJT000
Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.022uH 5% 100MHz 8Q-Factor Ceramic 0.35A 0.7Ohm DCR 0402 T/R
Win Source:
FIXED IND 22NH 350MA 700 MOHM
额定电流 350 mA
容差 ±5 %
电感 22 nH
自谐频率 1.7 GHz
Q值 8
产品系列 MLG
电感公差 ±5 %
测试频率 100 MHz
电阻DC） ≤700 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
电阻DC Max 700 mΩ
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.55 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
