MLK0603L10NJT000

固定电感器

固定器

立创商城:
10nH ±5% 480mΩ

得捷:
FIXED IND 10NH 200MA 800MOHM SMD

艾睿:

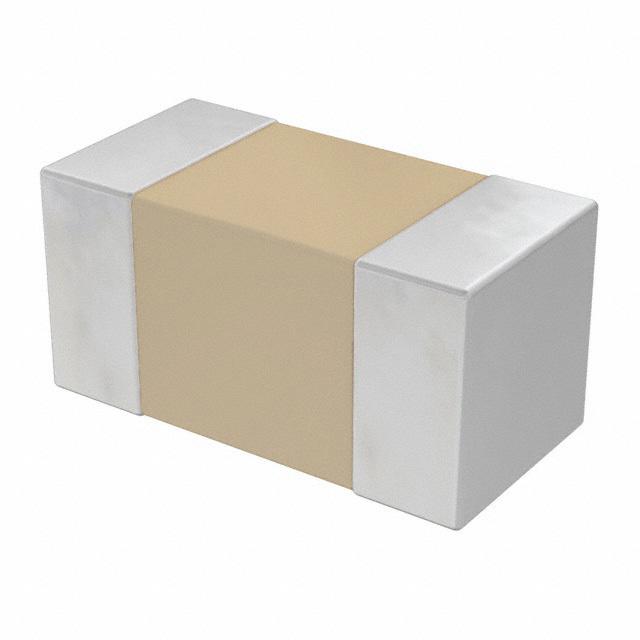

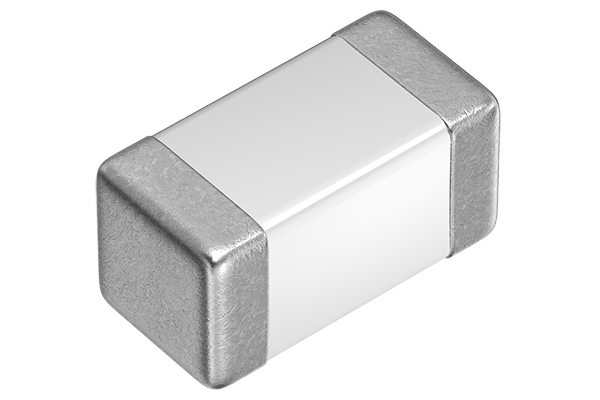

An ideal space-saving electronic component is this rf chip MLK0603L10NJT000 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has an inductance of 10n H. This device is made with multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5.5G Hz. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 800m Ohm. It has a tolerance of 5%.

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.01uH 5% 100MHz 6Q-Factor Ceramic 0.2A 0.8Ohm DCR 0201 T/R

Electro Sonic:
Inductor RF Chip Unshielded Multi-Layer 10nH 5% 100MHz 6Q-Factor Ceramic 200mA 800mOhm DCR 0201 T/R

Win Source:
10nH Unshielded Multilayer Inductor 200mA 800 mOhm Max 0201 0603 Metric
