0805 1.5uH
FIXED IND 1.5UH 750MA 130 MOHM
立创商城:
1.5uH ±20% 250mA 130mΩ
得捷:
FIXED IND 1.5UH 750MA 130MOHM SM
艾睿:

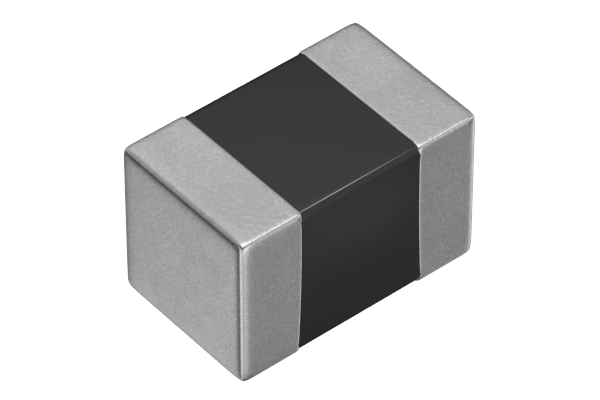

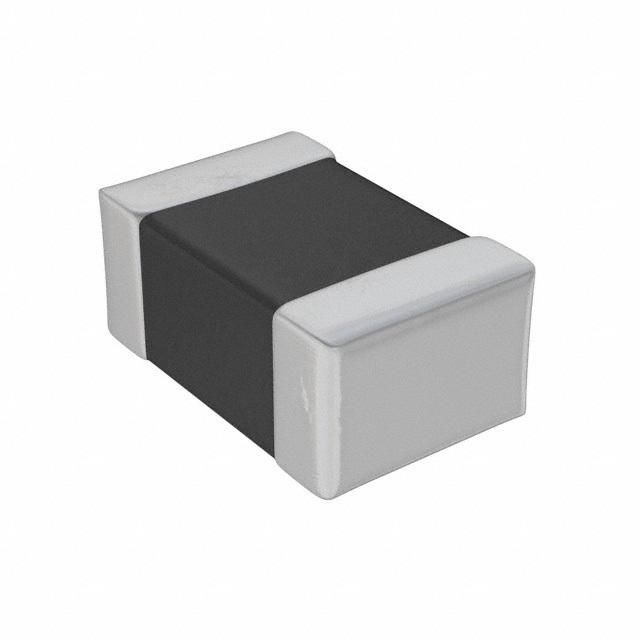

An ideal space-saving electronic component is this power MLZ2012A1R5WT000 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 20%. It has an inductance of 1.5u H. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 140MTyp Hz. This product is 2.2 mm long, 1.05 mm tall and 1.45 mm deep. This SMD inductor has a maximum DC current of 750mA typ with a maximum resistance of 169m Ohm. This device is made with multi-layer technology.
Verical:
Inductor Power Shielded Multi-Layer 1.5uH 20% 10MHz Ferrite 0.75A 0.169Ohm DCR 0805 T/R
额定电流 750 mA
容差 ±20 %
电感 1.5 µH
自谐频率 140 MHz
产品系列 MLZ
测试频率 10 MHz
电阻DC) ≤169 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.169 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.05 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
