固定电感器
固定器
立创商城:
56nH ±5% 2.35Ω
得捷:
FIXED IND 56NH 100MA 3.5 OHM SMD
艾睿:

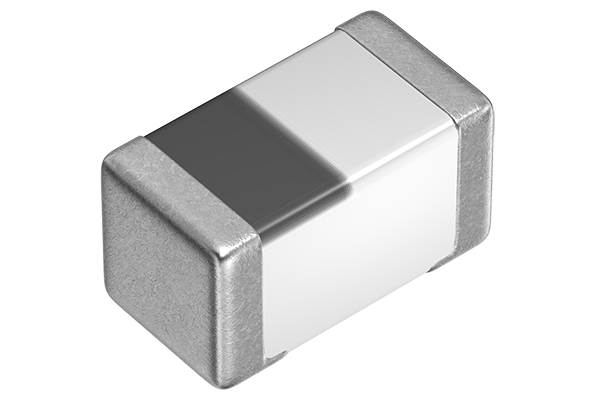

This high frequency chip MLG0603P56NJT000 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its test frequency is 300M Hz, while its minimum self-resonant frequency is 1.4G Hz. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This device utilizes multi-layer technology. It has an inductance of 56n H. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 3.5 Ohm.
Win Source:
FIXED IND 56NH 100MA 3.5 OHM SMD
额定电流 100 mA
容差 ±5 %
电感 56 nH
自谐频率 1.4 GHz
Q值 10
产品系列 MLG-P
电感公差 ±5 %
测试频率 300 MHz
电阻DC） ≤3.5 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±5 %
电阻DC Max 3.5 Ω
安装方式 Surface Mount
封装公制 0603
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.33 mm
封装公制 0603
封装 0201
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
