固定电感器
固定器
得捷:
FIXED IND 2.7NH 500MA 200MOHM SM
艾睿:

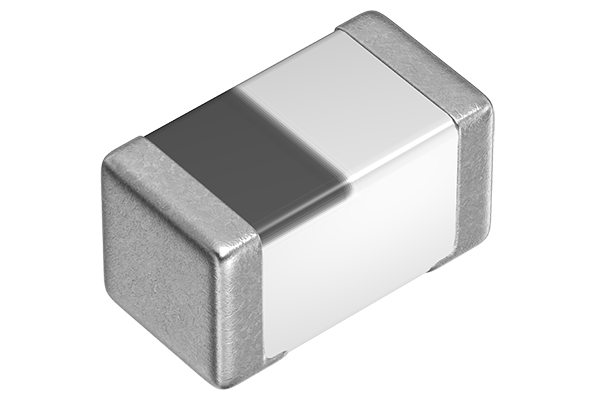

This high frequency chip MLG0603P2N7ST000 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 7.5G Hz. This device utilizes multi-layer technology. This product is 0.63 mm long, 0.33 mm tall and 0.33 mm deep. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 200m Ohm. It has an inductance of 2.7n H.
Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.0027uH 0.3nH 500MHz 14Q-Factor Ceramic 0.5A 0.2Ohm DCR 0201 T/R
额定电流 500 mA
电感 0.0027 µH
自谐频率 7.5 GHz
Q值 14
产品系列 MLG-P
测试频率 500 MHz
电阻DC） ≤200 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.2 Ω
安装方式 Surface Mount
封装公制 0603
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.33 mm
封装公制 0603
封装 0201
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
