MLZ2012M6R8HT000

0805 6.8uH

6.8 µH 屏蔽 多层 器 350 mA 400 毫欧 0805（2012 公制）

得捷:
FIXED IND 6.8UH 350MA 400MOHM SM

立创商城:
6.8uH ±20% 220mA 400mΩ

艾睿:

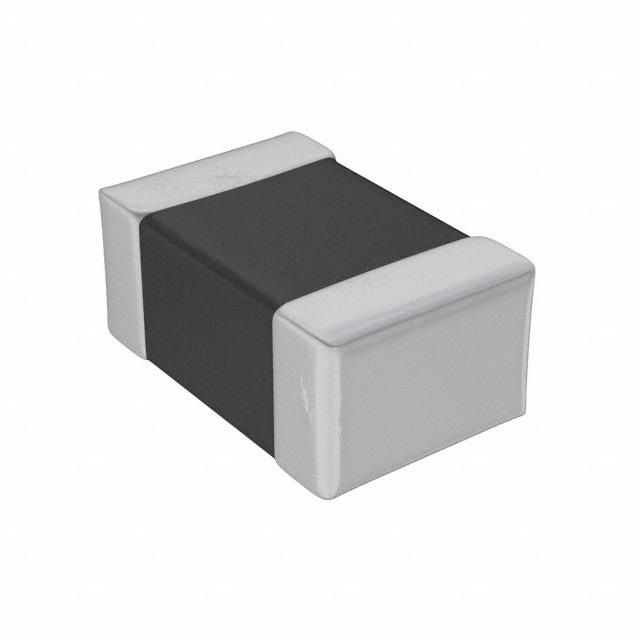

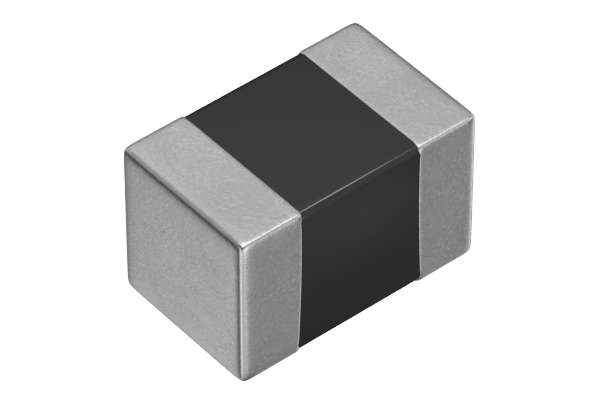

Make any circuit look clean and compact using this power MLZ2012M6R8HT000 surface mount inductor from TDK. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 20%. This product is 2.2 mm long, 1.45 mm tall and 1.45 mm deep. This device is made with multi-layer technology. It has an inductance of 6.8u H. This SMD inductor has a maximum DC current of 350mA typ with a maximum resistance of 520m Ohm. Its test frequency is 2M Hz.

安富利:
Ind Power Shielded Multi-Layer 6.8uH 20% 2MHz Ferrite 350mA 0805 Blister Plastic T/R

Verical:
Inductor Power Shielded Multi-Layer 6.8uH 20% 2MHz Ferrite 0.35A 0.52Ohm DCR 0805 T/R
