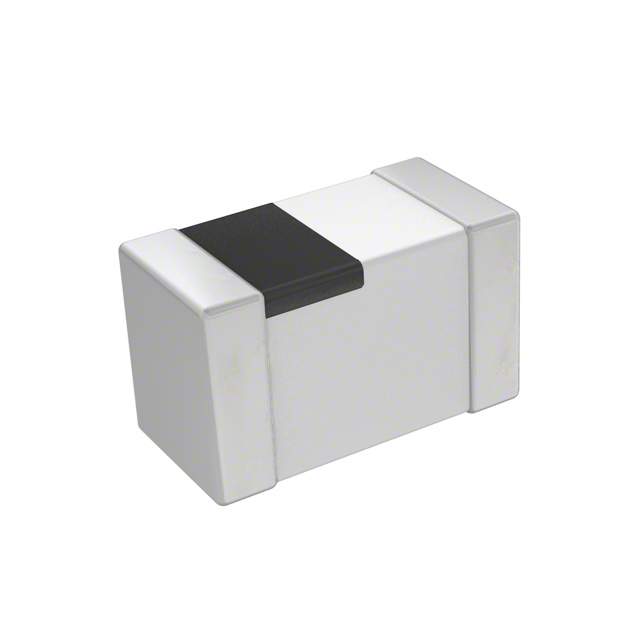

MLG1608B3N3ST000

固定电感器

值Inductance| 3.3nH \---|--- 误差Tolerance| ±0.3nH 额定电流Current Rating| 600mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 10 @ 100MHz 自振谐频率SRFFrequency - Self Resonant| 6.5GHz DC电阻DCRDC Resistance DCR| 0.12Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| MLG Series MLG1608 FEATURES • Inductance values are supported from 1 to 1000nH. • Advanced monolithic structure is formed using a multilayering and sintering process with ceramic and conductive materials for high-frequency. • The products contain no lead and also support lead-free soldering. • It is a product conforming to RoHS directive. 描述与应用| MLG系列MLG1608 特点 •电感值支持从1到1000nH。 •产品中含有不含铅，也支持无铅焊接。
