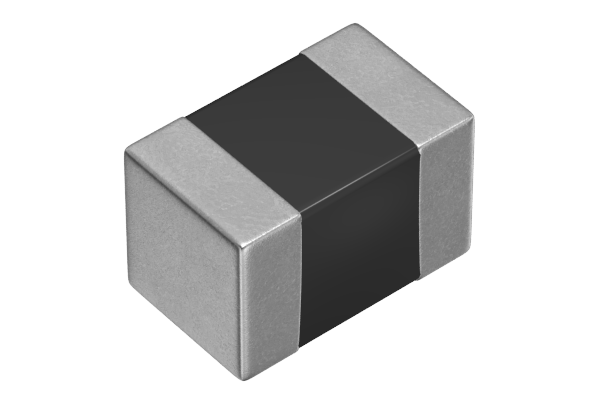

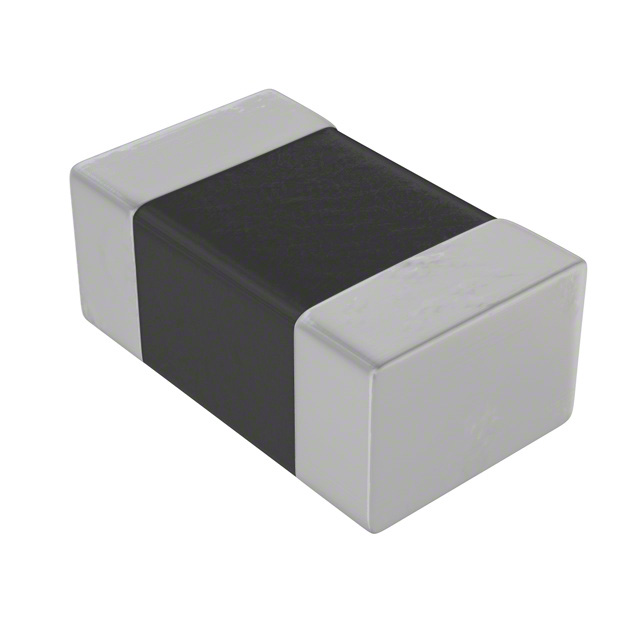

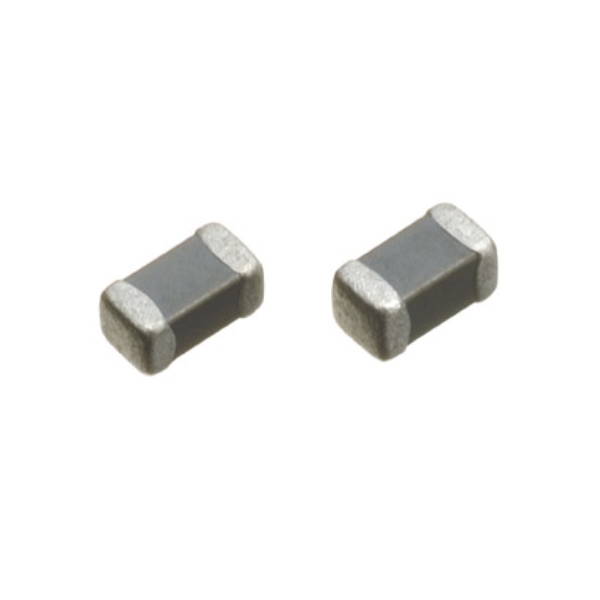

MLF2012A4R7KT000

固定电感器

固定器

得捷:
FIXED IND 4.7UH 30MA 700MOHM SMD

立创商城:
4.7uH ±10% 350mΩ

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip MLF2012A4R7KT000 surface mount inductor from TDK to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 50M Hz. It has an inductance of 4.7u H. It has a tolerance of 10%. This product is 2.2 mm long, 1.45 mm tall and 1.45 mm deep. This device is made with multi-layer technology. This SMD inductor has a maximum DC current of 30m A with a maximum resistance of 700m Ohm.

Chip1Stop:
Inductor RF Chip Shielded Multi-Layer 4.7uH 10% 10MHz 45Q-Factor Ferrite 30mA 700mOhm DCR 0805 Blister T/R

Verical:
Inductor Power Shielded Multi-Layer 4.7uH 10% 10MHz 45Q-Factor Ferrite 0.03A 0.7Ohm DCR 0805 T/R

Electro Sonic:
Inductor RF Chip Shielded Multi-Layer 4.7uH 10% 10MHz 45Q-Factor Ferrite 30mA 700mOhm DCR 0805 T/R

Win Source:
4.7μH Shielded Multilayer Inductor 30mA 700 mOhm Max 0805 2012 Metric
