MHQ1005P3N9ST000

0402 3.9nH ±0.3nH

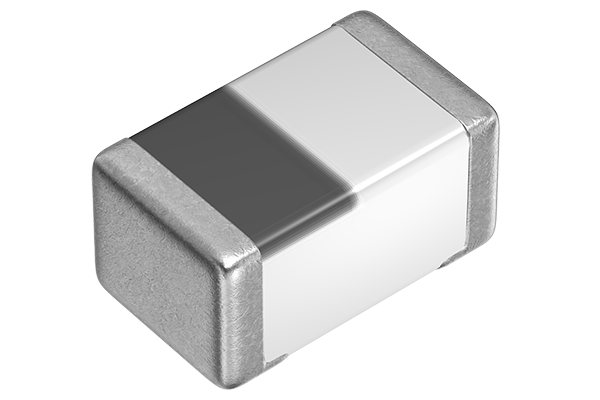

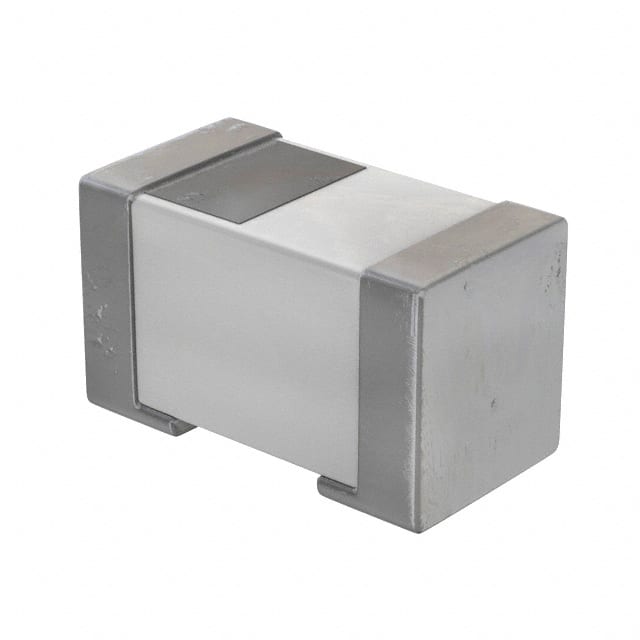

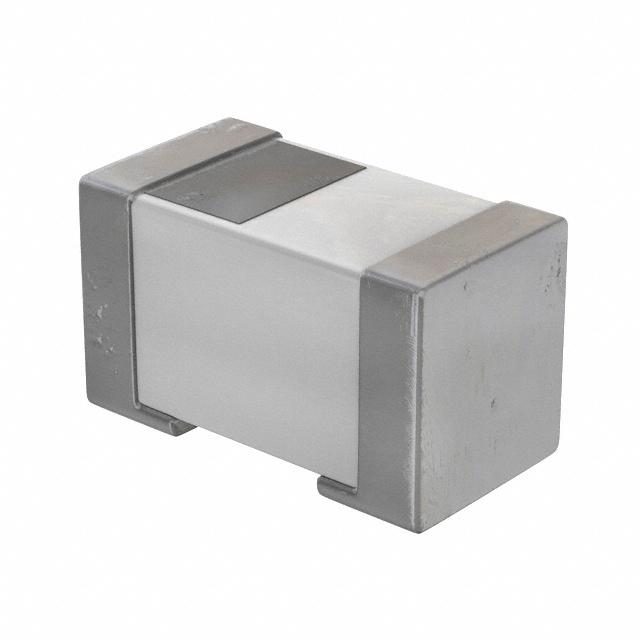

MHQ-P Series 0402 3.9 nH ±0.3 nH Tol 900 mA Multilayer Ceramic Inductor

立创商城:
3.9nH ±0.3nH 70mΩ

得捷:
FIXED IND 3.9NH 900MA 90MOHM SMD

艾睿:

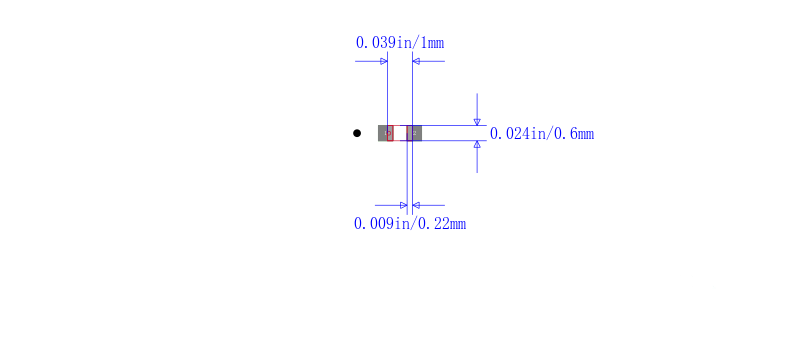

Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this high frequency chip MHQ1005P3N9ST000 surface mount inductor from TDK is perfect for you! This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.05 mm long, 0.6 mm tall and 0.65 mm deep. This device is made with multi-layer technology. This SMD inductor has a maximum DC current of 900m A with a maximum resistance of 90m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5G Hz. It has an inductance of 3.9n H.

Verical:
Inductor High Frequency Chip Unshielded Multi-Layer 0.0039uH 0.3nH 100MHz 23Q-Factor Ceramic 0.9A 0.09Ohm DCR 0402 T/R
