固定电感器
固定器
立创商城:
4.7uH ±20% 220mΩ
得捷:
FIXED IND 4.7UH 800MA 286MOHM SM
艾睿:

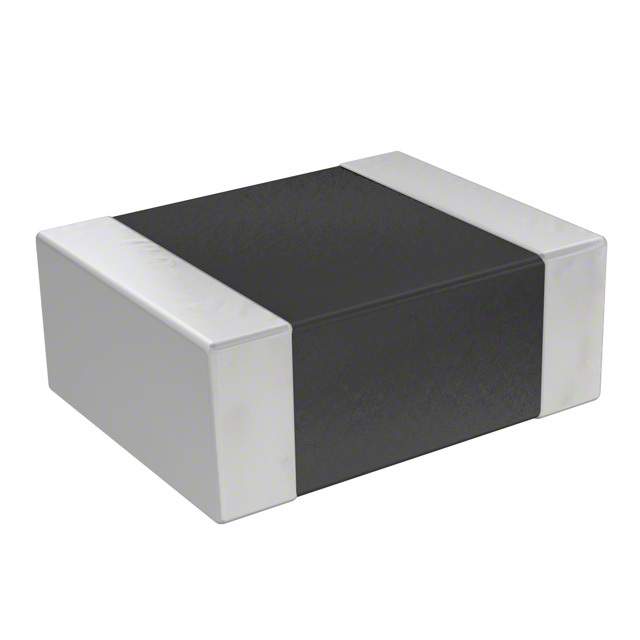

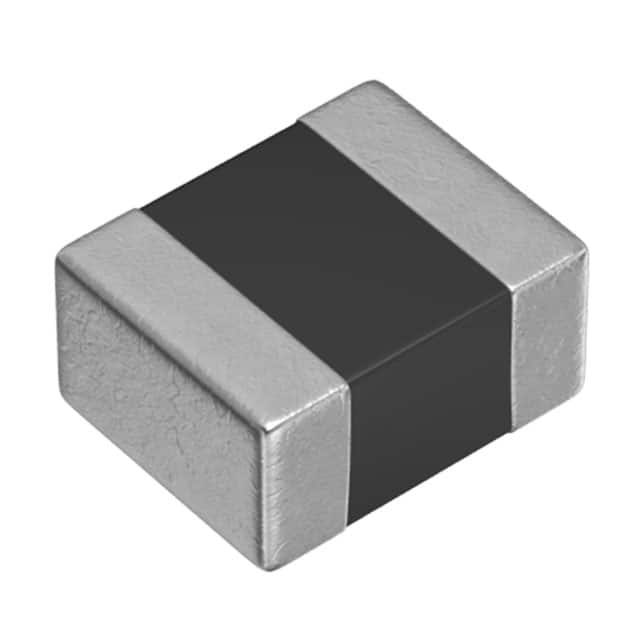

This power MLP2520V4R7ST0S1 surface mount inductor from TDK is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 2.65 mm long, 1.2 mm tall and 2.15 mm deep. This device is made with multi-layer technology. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 286m Ohm. Its test frequency is 2M Hz. It has an inductance of 4.7u H.
Verical:
Inductor Power Shielded Multi-Layer 4.7uH 20% 2MHz Ferrite 0.8A 0.286Ohm DCR 1008 T/R
额定电流 800 mA
容差 ±20 %
电感 4.7 µH
产品系列 MLP
电感公差 ±0.3 nH
测试频率 2 MHz
电阻DC) ≤286 mΩ
工作温度Max 125 ℃
工作温度Min -40 ℃
电阻DC Max 0.286 Ω
安装方式 Surface Mount
封装 1008
长度 2.5 mm
宽度 2 mm
高度 1.2 mm
封装 1008
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 Commercial Grade
RoHS标准 RoHS Compliant
含铅标准 无铅
