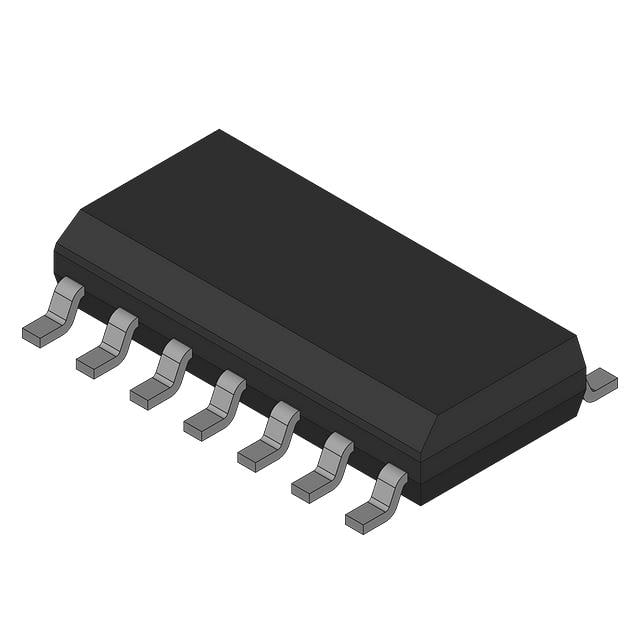

ON SEMICONDUCTOR MC74HC126ADR2G 芯片, 非反相缓冲器, SOIC-14
By driving the input to the transmission line this buffer and line driver by will amplify any signal. With a 3-state output, this is power management at its best. This line driver has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 4 channels per chip.
电源电压DC 2.00V min
无卤素状态 Halogen Free
输出接口数 4
通道数 4
针脚数 14
位数 4
耗散功率 500 mW
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
高度 1.5 mm
封装 SOIC-14
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74HC126ADR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC126ADG 安森美 | 完全替代 | MC74HC126ADR2G和MC74HC126ADG的区别 |
MM74HC126M 安森美 | 类似代替 | MC74HC126ADR2G和MM74HC126M的区别 |
MM74HC126MX 安森美 | 类似代替 | MC74HC126ADR2G和MM74HC126MX的区别 |
