MM74HC126MTC

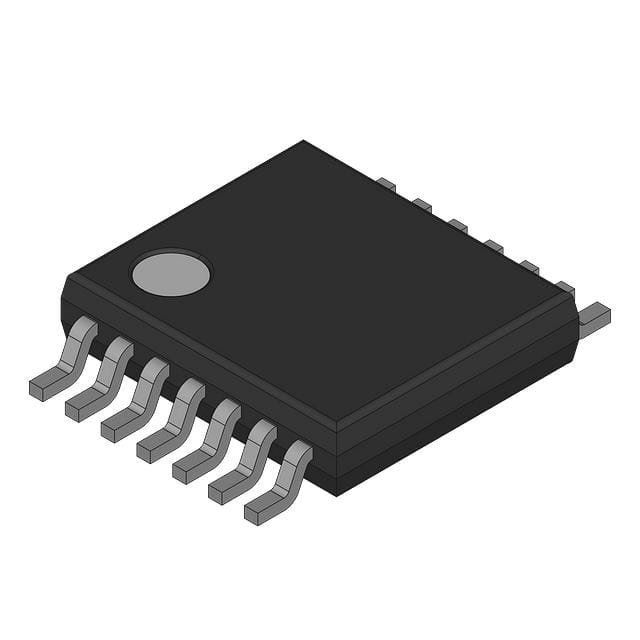

FAIRCHILD SEMICONDUCTOR  MM74HC126MTC  芯片, 74HC, SMD

General Description

The MM74HC125 and MM74HC126 are general purpose 3-STATE high speed non-inverting buffers utilizing advanced silicon-gate CMOS technology. They have high drive current outputs which enable high speed operation even when driving large bus capacitances. These circuits possess the low power dissipation of CMOS circuitry, yet have speeds comparable to low power Schottky TTL circuits. Both circuits are capable of driving up to 15 low power Schottky inputs.

The MM74HC125 require the 3-STATE control input C to be taken high to put the output into the high impedance condition, whereas the MM74HC126 require the control input to be low to put the output into high impedance. All inputs are protected from damage due to static discharge by diodes to VCC and ground.

Features

■ Typical propagation delay: 13 ns

■ Wide operating voltage range: 2–6V

■ Low input current: 1 µA maximum

■ Low quiescent current: 80 µA maximum 74HC

■ Fanout of 15 LS-TTL loads
