D类锁存器,三态
Store state information for later use by using the flip flop device. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 5.50V max
无卤素状态 Halogen Free
输出接口数 8
时钟频率 115 MHz
位数 8
极性 Non-Inverting
输入电容 4 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
安装方式 Surface Mount

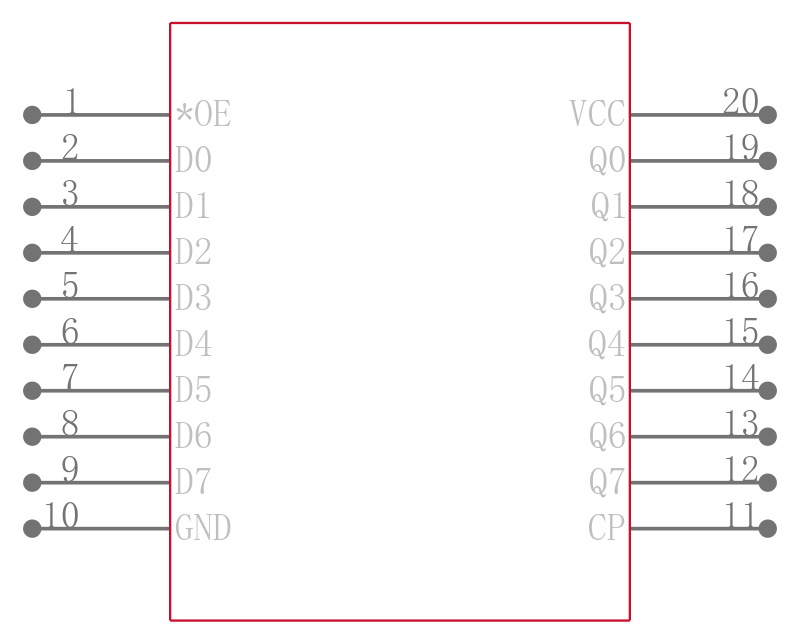

引脚数 20

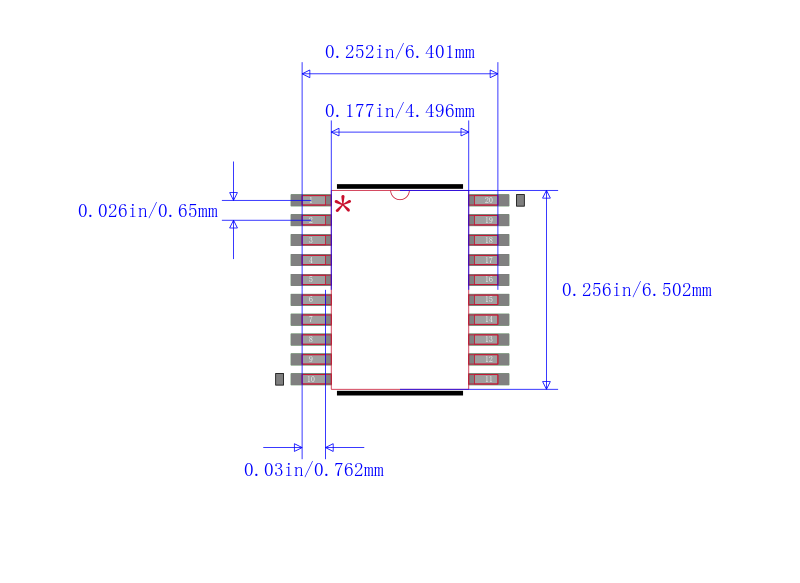

封装 TSSOP-20
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74VHC574DTG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74VHC574DTR2G 安森美 | 完全替代 | MC74VHC574DTG和MC74VHC574DTR2G的区别 |
74VHC574MTCX 安森美 | 完全替代 | MC74VHC574DTG和74VHC574MTCX的区别 |
MC74VHC574DT 安森美 | 完全替代 | MC74VHC574DTG和MC74VHC574DT的区别 |
