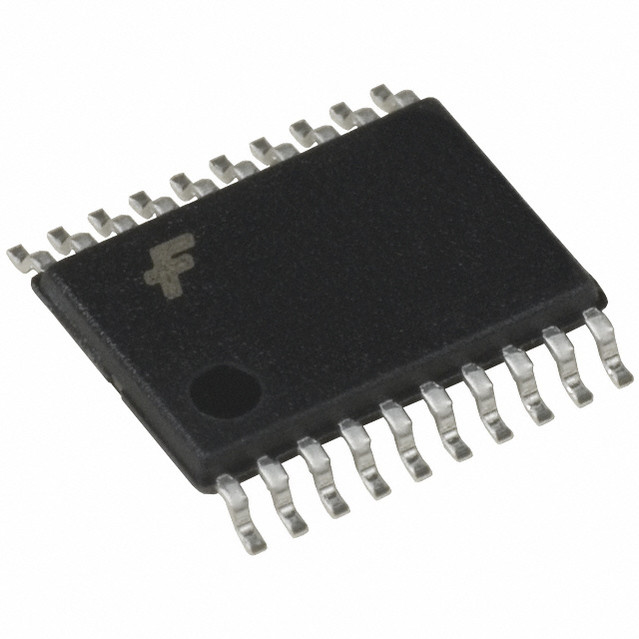

Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1Element 20Pin TSSOP T/R
Store state information by enabling this flip flop device from Semiconductor. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 28 MHz
电源电压DC 5.00 V
输出接口数 8
电路数 8
通道数 8
时钟频率 33 MHz
位数 8
极性 Non-Inverting
输入电容 10 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MM74HCT574MTCX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MM74HCT574MTC 飞兆/仙童 | 完全替代 | MM74HCT574MTCX和MM74HCT574MTC的区别 |
SN74HCT574PWR 德州仪器 | 功能相似 | MM74HCT574MTCX和SN74HCT574PWR的区别 |
SN74HCT574PW 德州仪器 | 功能相似 | MM74HCT574MTCX和SN74HCT574PW的区别 |
