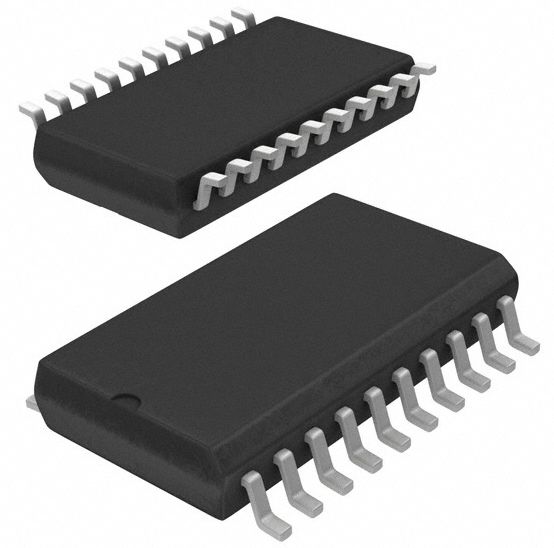

八位锁存器,三态输出
Octal Transparent Latch with 3 State Outputs
The MC74AC373/74ACT373 consists of eight latches with 3−state outputs for bus organized system applications. The flip−flops appear transparent to the data when Latch Enable LE is HIGH. When LE is LOW, the data that meets the setup time is latched. Data appears on the bus when the Output Enable OE is LOW. When OEis HIGH, the bus output is in the high impedance state.
Features
•Eight Latches in a Single Package
•3−State Outputs for Bus Interfacing
•Outputs Source/Sink 24 mA
•′ACT373 Has TTL Compatible Inputs
•Pb−Free Packages are Available
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74ACT373DWR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74ACT373DWG 安森美 | 完全替代 | MC74ACT373DWR2G和MC74ACT373DWG的区别 |
74ACT373SCX 飞兆/仙童 | 完全替代 | MC74ACT373DWR2G和74ACT373SCX的区别 |
MC74ACT373DW 安森美 | 完全替代 | MC74ACT373DWR2G和MC74ACT373DW的区别 |
