D触发器三态同相输出
Store state information for later use by using the flip flop device. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
频率 95 MHz
无卤素状态 Halogen Free
输出接口数 8
针脚数 20
时钟频率 95 MHz
位数 8
输入电容 4.5 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20

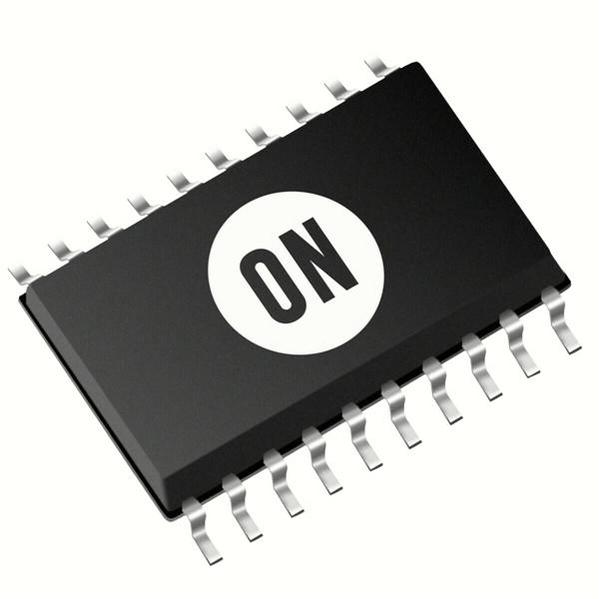

封装 TSSOP-20
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74AC574DTR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74AC574DTR2 安森美 | 完全替代 | MC74AC574DTR2G和MC74AC574DTR2的区别 |
SN74AC574PW 德州仪器 | 功能相似 | MC74AC574DTR2G和SN74AC574PW的区别 |
74AC574MTC 飞兆/仙童 | 功能相似 | MC74AC574DTR2G和74AC574MTC的区别 |
