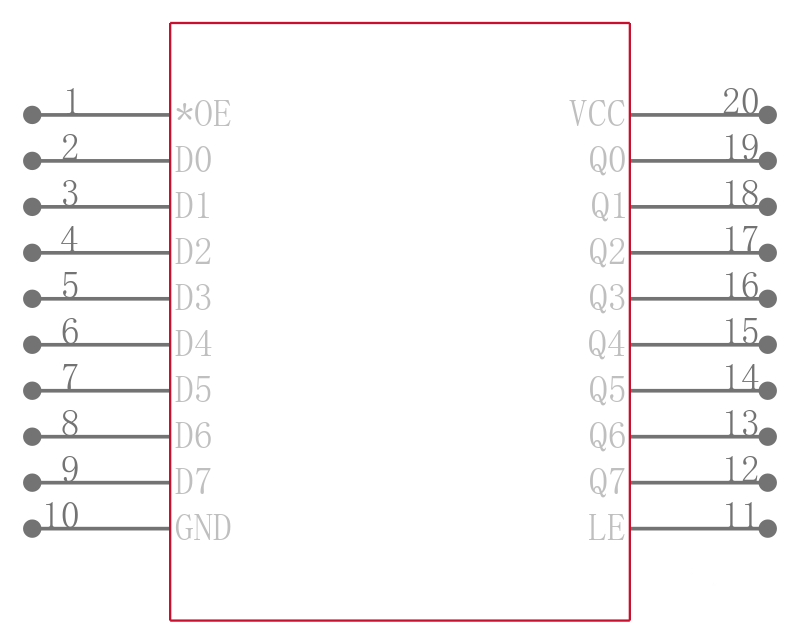

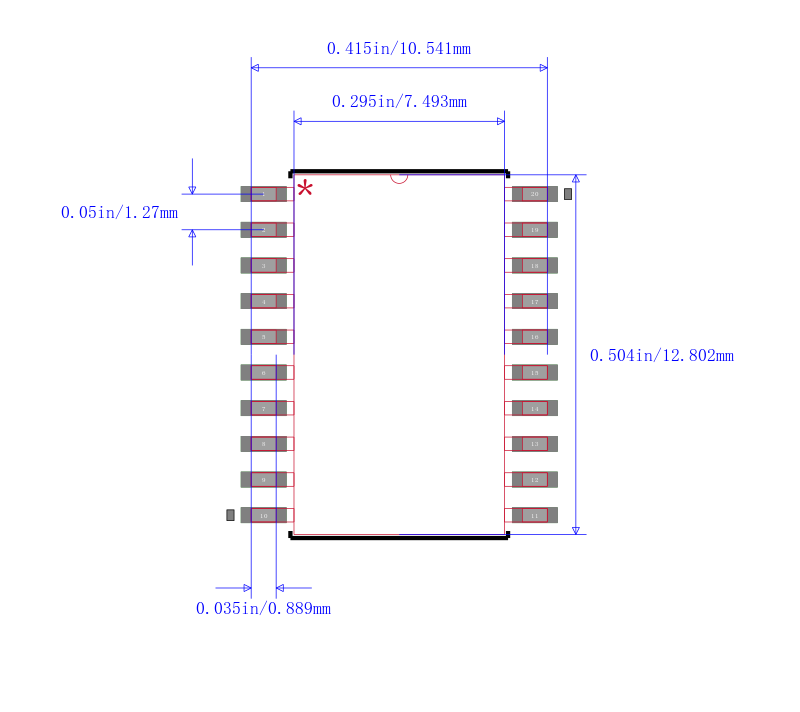

MC74VHC573DWR2G

D锁存,三态同相输出

The MC74VHC573 is an advanced high speed CMOS octal latch with 3-state output fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. This 8-bit D-type latch is controlled by a latch enable input and an output enable input. When the output enable input is high, the eight outputs are in a high impedance state. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7V, allowing the interface of 5V systems to 3V systems.

Features

---

 |

.

High Speed: tPD = 4.5ns Typ at VCC = 5V

.

Low Power Dissipation: ICC = 4mA Max at TA = 25°C

.

High Noise Immunity: VNIH = VNIL = 28% VCC

.

Power Down Protection Provided on Inputs

.

Balanced Propagation Delays

.

Designed for 2V to 5.5V Operating Range

.

Low Noise: VOLP = 1.2V Max

.

Pin and Function Compatible with Other Standard Logic Families

.

Latchup Performance Exceeds 300mA

.

ESD Performance: HBM > 2000V; Machine Model > 200V

.

Chip Complexity: 218 FETs or 54.5 Equivalent Gates

.

These devices are available in Pb-free packages. Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local sales office or representative.
