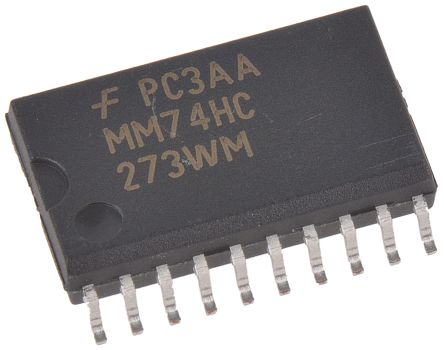

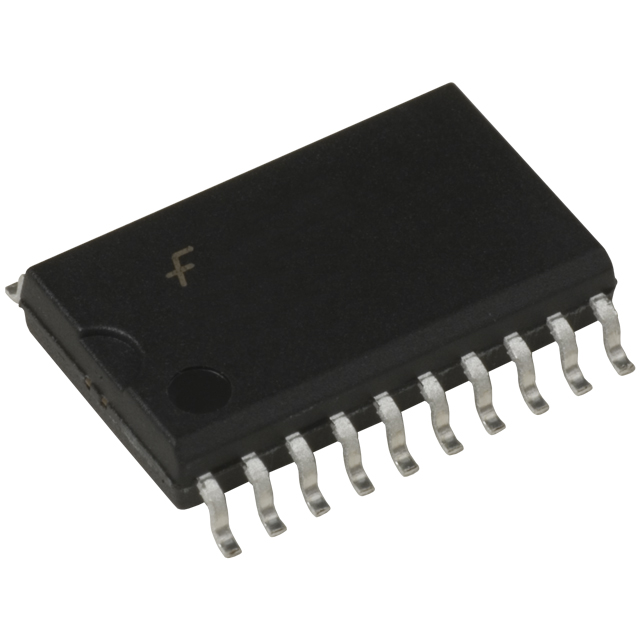

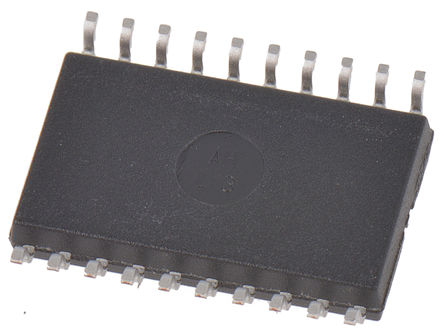

FAIRCHILD SEMICONDUCTOR MM74HC273WMX 触发器, 非反相, 正沿, D, 18 ns, 78 MHz, WSOIC, 20 引脚
The is an octal D-type Flip-flop with clear. This edge triggered flip-flop utilizes advanced silicon-gate CMOS technology to implement D-type flip-flop. It possess high noise immunity, low power and speeds comparable to low power Schottky TTL circuits. This device contains 8 master-slave flip-flops with a common clock and common clear. Data on the D input having the specified setup and hold times is transferred to the Q output on the low-to-high transition of the clock input. The clear input when low, sets all outputs to a low state. Each output can drive 10 low power Schottky TTL equivalent loads. The MM74HC273 is functionally as well as pin compatible to the 74LS273. All inputs are protected from damage due to static discharge by diodes to VCC and ground.
频率 78 MHz
电源电压DC 2.00V min
电路数 8
针脚数 20
时钟频率 78 MHz
位数 8
极性 Non-Inverting
输入电容 7 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 13.01 mm
宽度 7.595 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MM74HC273WMX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MM74HC273WM 飞兆/仙童 | 类似代替 | MM74HC273WMX和MM74HC273WM的区别 |
MC74HC273ADTR2G 安森美 | 功能相似 | MM74HC273WMX和MC74HC273ADTR2G的区别 |
MC74HC273ADWG 安森美 | 功能相似 | MM74HC273WMX和MC74HC273ADWG的区别 |
