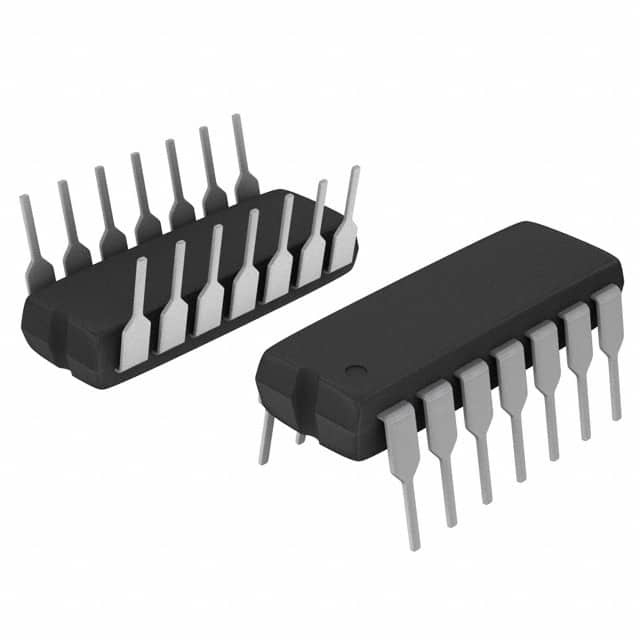

ON SEMICONDUCTOR MC74HC125ANG 芯片, 74HC CMOS逻辑器件
Leading the input to the transmission line this buffer and line driver by will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product comes in rail packaging to keep individual parts separated and protected. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 4 channels per chip.
电源电压DC 2.00V min
输出接口数 4
供电电流 160 μA
电路数 4
通道数 4
针脚数 14
位数 4
耗散功率 750 mW
逻辑门个数 4
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 750 mW
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 14
封装 DIP-14
长度 19.56 mm
宽度 6.6 mm
高度 3.68 mm
封装 DIP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74HC125ANG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC125ADG 安森美 | 类似代替 | MC74HC125ANG和MC74HC125ADG的区别 |
74HC125N,652 恩智浦 | 类似代替 | MC74HC125ANG和74HC125N,652的区别 |
CD54HC125F3A 德州仪器 | 类似代替 | MC74HC125ANG和CD54HC125F3A的区别 |
