ON SEMICONDUCTOR MC14521BDG. 逻辑芯片, 分频器, 24级
24−Stage Frequency Divider
The MC14521B consists of a chain of 24 flip−flops with an input circuit that allows three modes of operation. The input will function as a crystal oscillator, an RC oscillator, oras an input buffer for an external oscillator. Each flip−flop divides the frequency of the previous flip−flop by two, consequently this part will count up to 2 24 = 16,777,216. The count advances on the negative going edge of the clock. The outputs of the last seven−stages are available for added flexibility.
Features
•All Stages are Resettable
•Reset Disables the RC Oscillator for Low Standby Power Drain
•RC and Crystal Oscillator Outputs Are Capable of Driving External Loads
•Test Mode to Reduce Test Time
•VDD′and VSS′Pins Brought Out on Crystal Oscillator Inverter to Allow the Connection of External Resistors for Low−Power Operation
•Supply Voltage Range = 3.0 Vdc to 18 Vdc
•Capable of Driving Two Low−Power TTL Loads or One Low−Power Schottky TTL Load over the Rated Temperature Range
•Pb−Free Packages are Available电源电压DC 3.00V min
无卤素状态 Halogen Free
针脚数 16
时钟频率 12 MHz
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Surface Mount

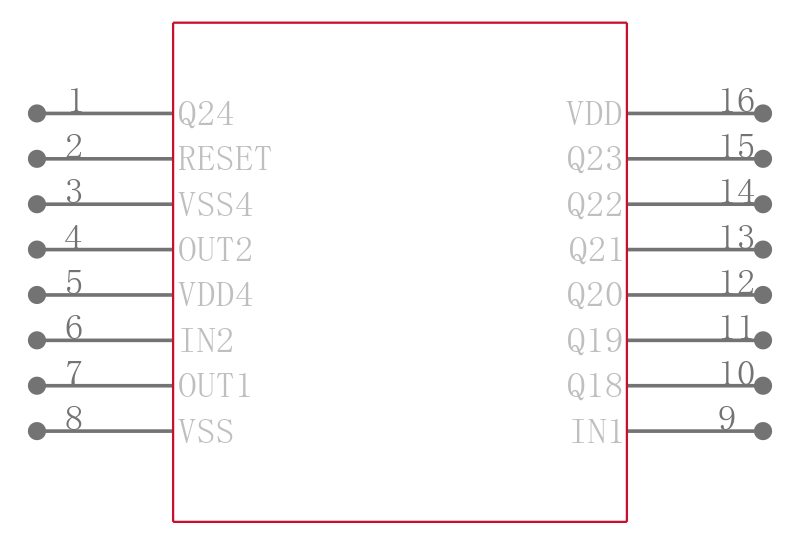

引脚数 16

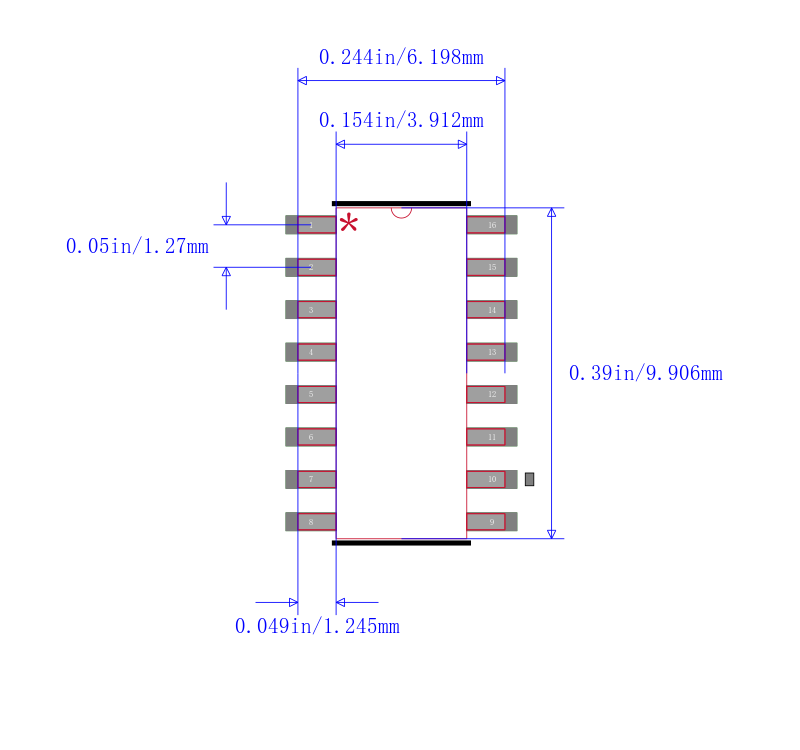

封装 SOIC-16
高度 1.5 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC14521BDG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
CD4521BM 德州仪器 | 完全替代 | MC14521BDG和CD4521BM的区别 |
MC14521BDR2G 安森美 | 完全替代 | MC14521BDG和MC14521BDR2G的区别 |
MC14521BCPG 安森美 | 完全替代 | MC14521BDG和MC14521BCPG的区别 |
