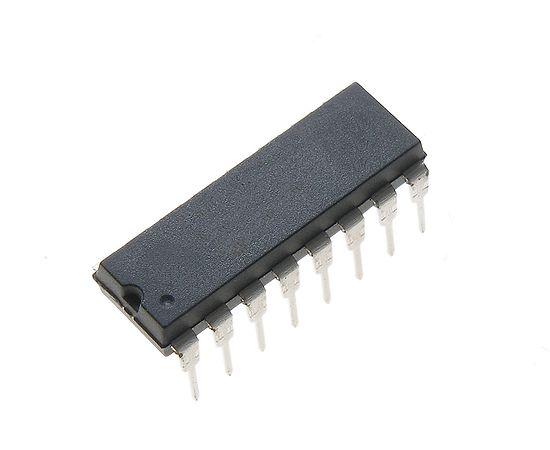

HC4020 14级二进制计数器HC4040 12级二进制计数器 HC4020 14 STAGE BINARY COUNTER HC4040 12 STAGE BINARY COUNTER
Add safety functionality to your circuit design by implementing this binary counter shift register by STMicroelectronics. This counter shift register has an operating temperature range of -55 °C to 125 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V min
输出接口数 12
电路数 1
时钟频率 70 MHz
位数 14
逻辑门个数 1
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
宽度 7.1 mm
封装 DIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M74HC4020B1R ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
CD54HC4020F 德州仪器 | 类似代替 | M74HC4020B1R和CD54HC4020F的区别 |
SN74HC4020N 德州仪器 | 功能相似 | M74HC4020B1R和SN74HC4020N的区别 |
CD74HC4020M 德州仪器 | 功能相似 | M74HC4020B1R和CD74HC4020M的区别 |
