MRS25000C3010FRP00

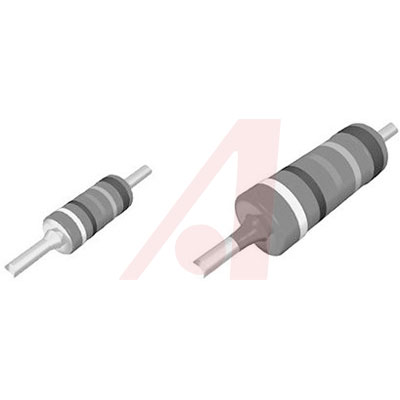

MRS25000C3010FRP00图片1

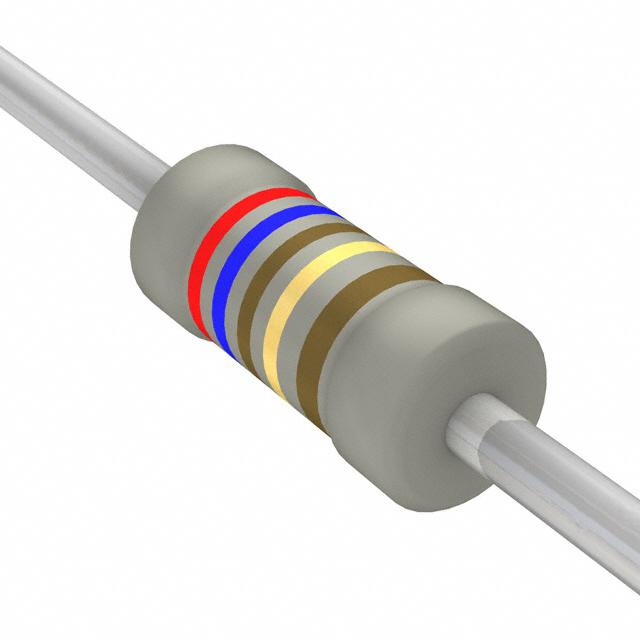

MRS25000C3010FRP00图片2

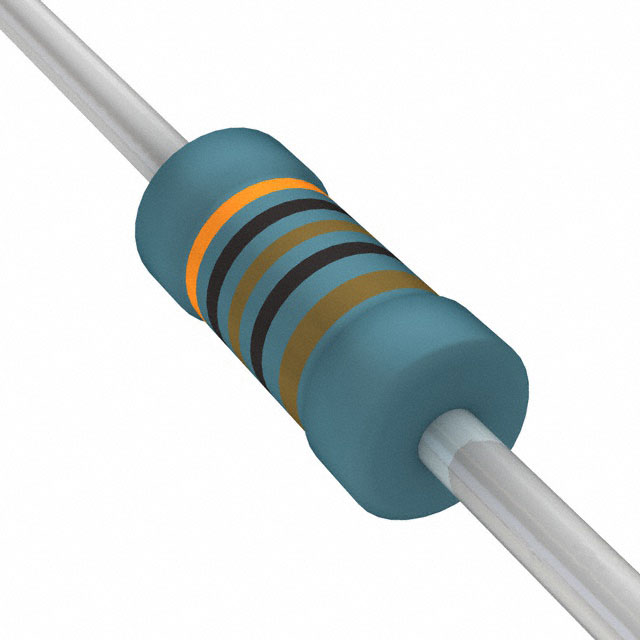

MRS25000C3010FRP00图片3
MRS25000C3010FRP00图片4
MRS25000C3010FRP00图片5
MRS25000C3010FRP00概述

Resistor; Metal Film; Res 301Ω; Pwr-Rtg 0.6W; Tol 1%; Axial; Tape & Reel

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting wires of electrolytic copper are welded to the end-caps. The resistors are coated with lacquer which provides electrical, mechanical, and climatic protection. Four or five colour code rings designate the resistance value and tolerance according to IEC 60 062. Suitable replacements for MRS16 and MRS25 are MBA/SMA 0204 and MBB/SMA 0207 professional.

**Features:**

* Professional Resistors in Small Outlines

* Low Noise

* Lead Pb-Free Solder Contacts

* Pure Tin Plating Provides Compatibility with Lead Pb-Free and Lead Containing Soldering Processes

* Compatible with “Restriction of the Use of Hazardous Substances“" RoHS Directive 2002/95/EC Issue 2004

**Applications:**

* All General Purpose Applications

MRS25000C3010FRP00中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.6 W

电阻 301 Ω

封装参数

安装方式 Through Hole

封装 Axial

外形尺寸

长度 6.5 mm

封装 Axial

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±50 ppm/℃

其他

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 PB free

数据手册

在线购买MRS25000C3010FRP00
型号: MRS25000C3010FRP00
描述:Resistor; Metal Film; Res 301Ω; Pwr-Rtg 0.6W; Tol 1%; Axial; Tape & Reel
替代型号MRS25000C3010FRP00
型号/品牌 代替类型 替代型号对比

MRS25000C3010FRP00

Vishay Semiconductor 威世

当前型号

当前型号

MBB0207CC3010FC100

威世

完全替代

MRS25000C3010FRP00和MBB0207CC3010FC100的区别

SFR2500003010FR500

威世

类似代替

MRS25000C3010FRP00和SFR2500003010FR500的区别

MBB02070C3010FRP00

威世

类似代替

MRS25000C3010FRP00和MBB02070C3010FRP00的区别
