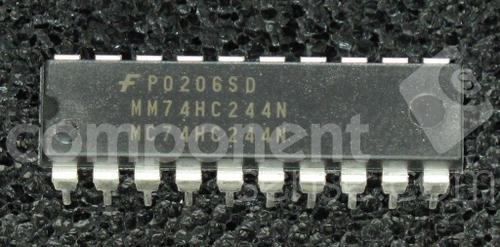

MM74HC244N

FAIRCHILD SEMICONDUCTOR  MM74HC244N  芯片, 74HC CMOS逻辑器件

General Description

The MM74HC244 is a non-inverting buffer and has two active low enables 1G and 2G; each enable independently controls 4 buffers. This device does not have Schmitt trigger inputs.

Features

■Typical propagation delay: 14 ns

■3-STATE outputs for connection to system buses

■Wide power supply range: 2–6V

■Low quiescent supply current: 80 μA

■Output current: 6 mA

贸泽:
Buffers & Line Drivers Octal 3-STATE Buffer

e络盟:
# FAIRCHILD SEMICONDUCTOR  MM74HC244N  芯片, 74HC CMOS逻辑器件

Verical:
Buffer/Line Driver 8-CH Non-Inverting 3-ST CMOS 20-Pin PDIP W Rail
