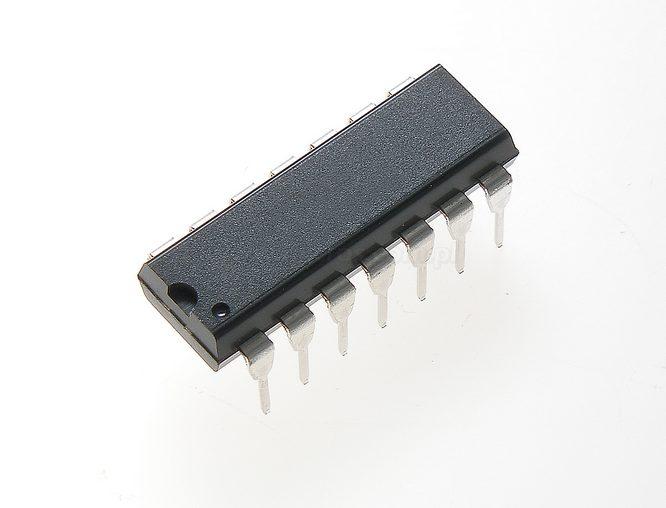

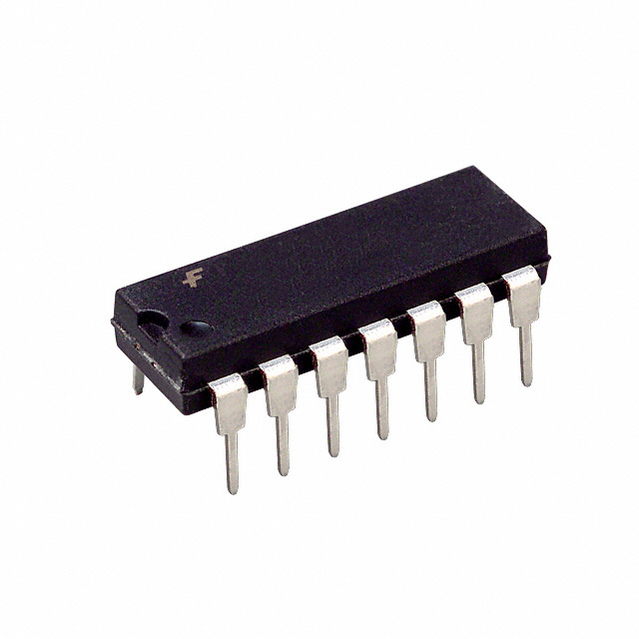

MM74C906N

十六开漏N沟道缓冲器。六角漏极开路P沟道缓冲器 Hex Open Drain N-Channel Buffers . Hex Open Drain P-Channel Buffers

General Description

The MM74C906 buffer employs monolithic CMOS technology in achieving open drain outputs. The MM74C906 consists of six inverters driving six N-channel devices. The open drain feature of these buffers makes level shifting or wire AND and wire OR functions by just the addition of pull up or pull-down resistors. All inputs are protected from static discharge by diode clamps to VCCand to ground.

Features

■Wide supply voltage range: 3V to 15V

■Guaranteed noise margin: 1V

■High noise immunity: 0.45 VCCtyp.

■High current sourcing and sinking open drain outputs
