八路缓冲器/ 3态输出的线路驱动器 Octal Buffer/Line Driver with 3−State Outputs
Leading the input to the transmission line this buffer and line driver by will amplify digital and analog signals. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
电源电压DC 4.50V min
输出接口数 8
供电电流 80 μA
电路数 8
通道数 8
位数 8
耗散功率 200 mW
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 20

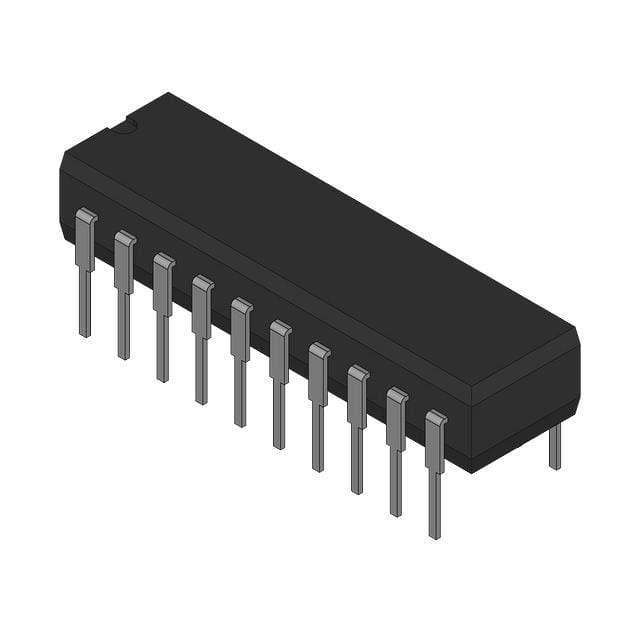

封装 DIP-20
长度 27.17 mm
宽度 6.6 mm
高度 3.56 mm
封装 DIP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC74ACT244NG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
74ACT244B 意法半导体 | 类似代替 | MC74ACT244NG和74ACT244B的区别 |
SN74ACT244N 德州仪器 | 功能相似 | MC74ACT244NG和SN74ACT244N的区别 |
CD74ACT244E 德州仪器 | 功能相似 | MC74ACT244NG和CD74ACT244E的区别 |
