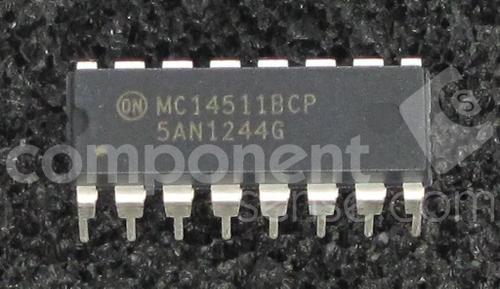

ON SEMICONDUCTOR MC14511BCPG 芯片, 4000系列 CMOS逻辑器件
The MC14511B BCD−to−seven segment latch/decoder/driver is constructed with complementary MOS CMOS enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. The circuit provides the functions of a 4−bit storage latch, an 8421 BCD−to−seven segment decoder, and an output drive capability. Lamp test LT, blanking BI, and latch enable LE inputs are used to test the display, to turn−off or pulse modulate the brightness of the display, and to store a BCD code, respectively. It can be used with seven−segment light−emitting diodes LED, incandescent, fluorescent, gas discharge, or liquid crystal readouts either directly or indirectly.
Applications include instrument e.g., counter, DVM, etc. display driver, computer/calculator display driver, cockpit display driver, and various clock, watch, and timer uses.
Features
• Low Logic Circuit Power Dissipation
• High−Current Sourcing Outputs Up to 25 mA
• Latch Storage of Code
• Blanking Input
• Lamp Test Provision
• Readout Blanking on all Illegal Input Combinations
• Lamp Intensity Modulation Capability
• Time Share Multiplexing Facility
• Supply Voltage Range = 3.0 V to 18 V
• Capable of Driving Two Low−power TTL Loads, One Low−power Schottky TTL Load, or Two HTL Loads Over the Rated Temperature Range
• Chip Complexity: 216 FETs or 54 Equivalent Gates
• Triple Diode Protection on all Inputs
• Pb−Free Packages are Available电源电压DC 3.00V min
工作电压 3V ~ 18V
输出接口数 7
供电电流 10 µA
电路数 1
针脚数 16
逻辑门个数 1
输入数 4
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 16

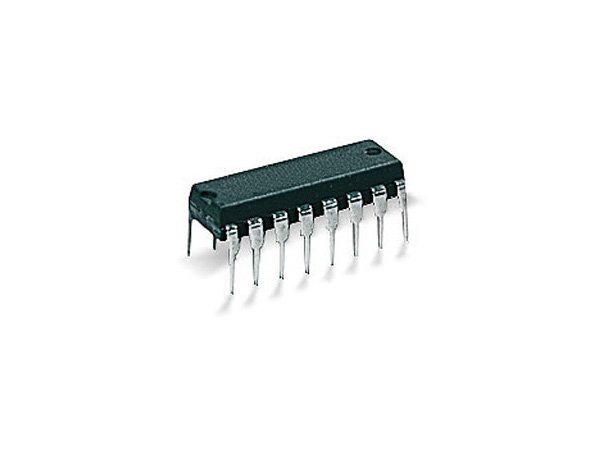

封装 DIP-16
长度 19.55 mm
宽度 7.62 mm
封装 DIP-16
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Box TB
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC14511BCPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74ACT139NG 安森美 | 类似代替 | MC14511BCPG和MC74ACT139NG的区别 |
CD4511BF 德州仪器 | 类似代替 | MC14511BCPG和CD4511BF的区别 |
CD4511BF3A 德州仪器 | 类似代替 | MC14511BCPG和CD4511BF3A的区别 |
