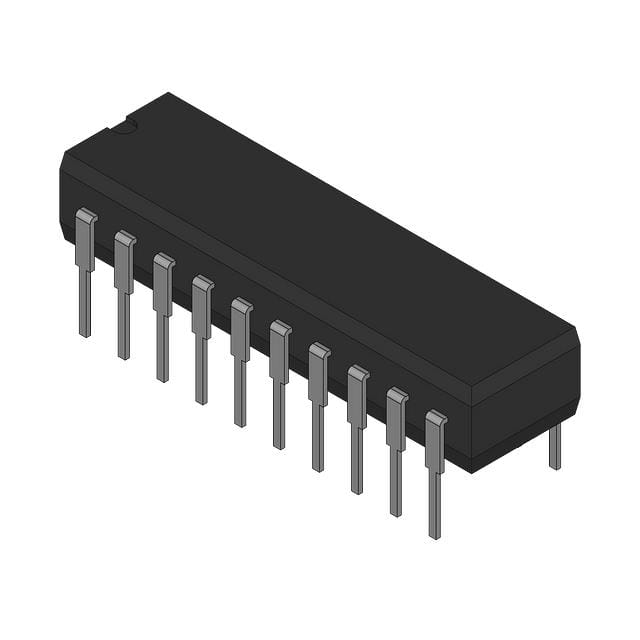

MM74HCT240N

反相八路三态缓冲器八路三态缓冲器 Inverting Octal 3-STATE Buffer Octal 3-STATE Buffer

General Description

The MM74HCT240 and MM74HCT244 3-STATE buffers utilize advanced silicon-gate CMOS technology and are general purpose high speed inverting and non-inverting buffers. They possess high drive current outputs which enable high speed operation even when driving large bus capacitances. These circuits achieve speeds comparable to low power Schottky devices, while retaining the low power consumption of CMOS. All three devices are TTL input compatible and have a fanout of 15 LS-TTL equivalent inputs.

MM74HCT devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.

Features

■ TTL input compatible

■ Typical propagation delay: 14 ns

■ 3-STATE outputs for connection to system buses

■ Low quiescent current: 80 PA

■ High output drive current: 6 mA min
