MC 系列 5.5 V ECL 差分 数据和时钟 D型双稳态触发器 - TSSOP-8
If you are looking for a simple device that can store state information, look no further than "s flip flop device. It has a differential output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This inverting/non-inverting device has a typical operating supply voltage of -3.3|-5|3.3|5 V. Its minimum operating supply voltage of -3|3 V, while its maximum is -5.5|5.5 V. It has 1 channels per chip.
频率 4.00 GHz
电源电压DC 3.00V min
无卤素状态 Halogen Free
输出接口数 1
输出电流 50.0 mA
电路数 1
时钟频率 3 GHz
位数 1
极性 Non-Inverting, Inverting
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5V, 5.5V
安装方式 Surface Mount
引脚数 8

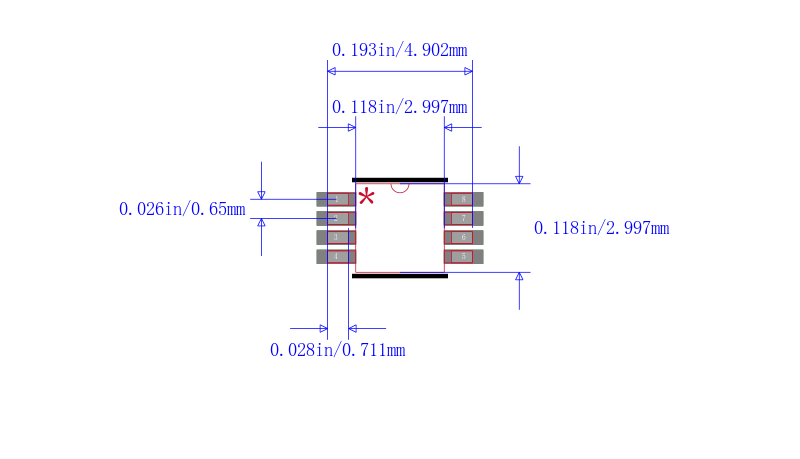

封装 TSSOP-8
长度 3.1 mm
宽度 3.1 mm
高度 0.95 mm
封装 TSSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Negative edge-triggering
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC100EP52DTR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC100EP52DR2G 安森美 | 完全替代 | MC100EP52DTR2G和MC100EP52DR2G的区别 |
MC100EP51DTG 安森美 | 类似代替 | MC100EP52DTR2G和MC100EP51DTG的区别 |
MC100EP52DTG 安森美 | 类似代替 | MC100EP52DTR2G和MC100EP52DTG的区别 |
