MC100EPT25DR2

-3.3V / -5V差分ECL至+ 3.3V LVTTL翻译 −3.3V / −5V Differential ECL to +3.3V LVTTL Translator

Description

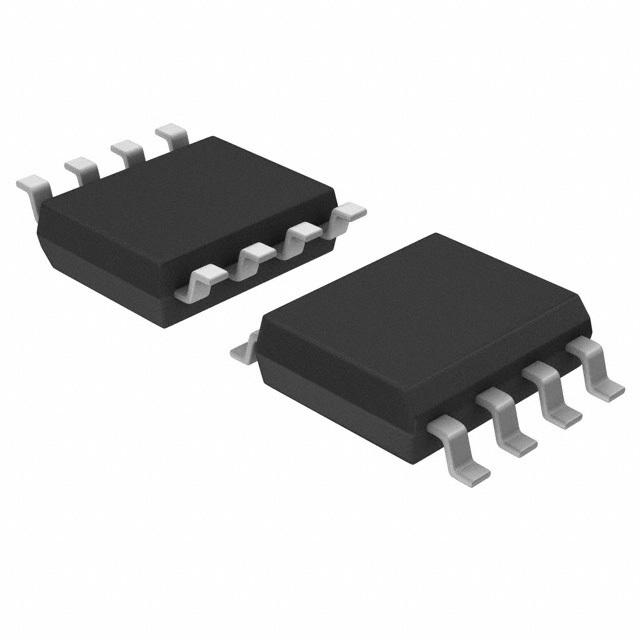

The MC100EPT25 is a Differential ECL to LVTTL translator. This device requires +3.3 V, −3.3 V to −5.2 V, and ground. The small outline 8−lead package and the single gate of the EPT25 make it ideal for applications which require the translation of a clock or data signal.

Features

•1.1 ns Typical Propagation Delay

•Maximum Frequency > 275 MHz Typical

•Operating Range: VCC= 3.0 V to 3.6 V; VEE= −5.5 V to −3.0 V; GND = 0 V

•24 mA TTL Outputs

•Q Output Will Default LOW with Inputs Open or at VEE

•VBBOutput

•Open Input Default State

•Safety Clamp on Inputs

•Pb−Free Packages are Available
