MC10H351 系列 5 V 表面贴装 四 TTL/NMOS转PECL* 转换器 - PLLC-20
The level translator can control and allow the proper input voltage into your electronic circuits. This level shifter has an operating temperature range of 0 °C to 75 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 5.00 V
无卤素状态 Halogen Free
输出电流 50 mA
电路数 1
通道数 4
位数 4
输入数 4
工作温度Max 75 ℃
工作温度Min 0 ℃
输出通道数 1
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

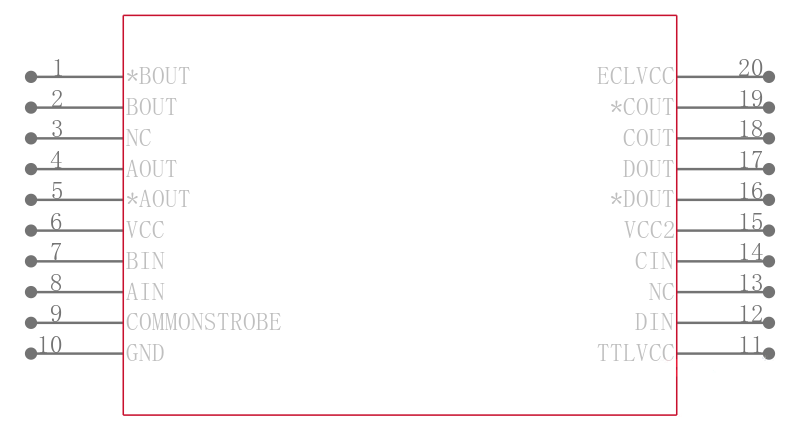

引脚数 20

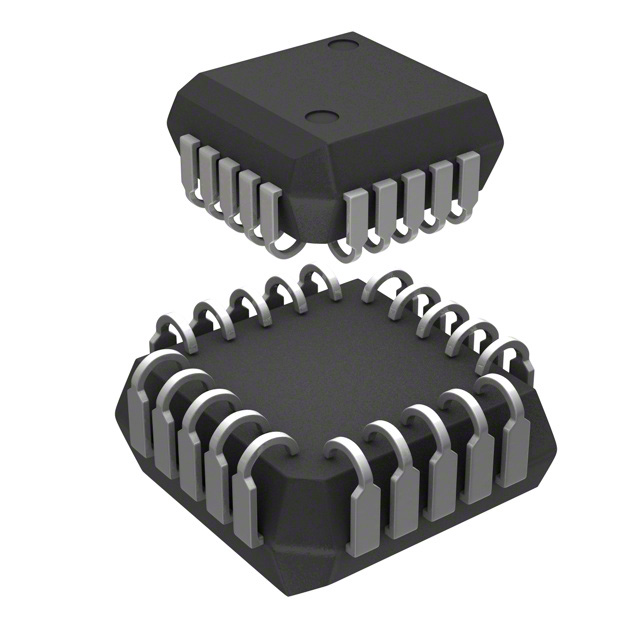

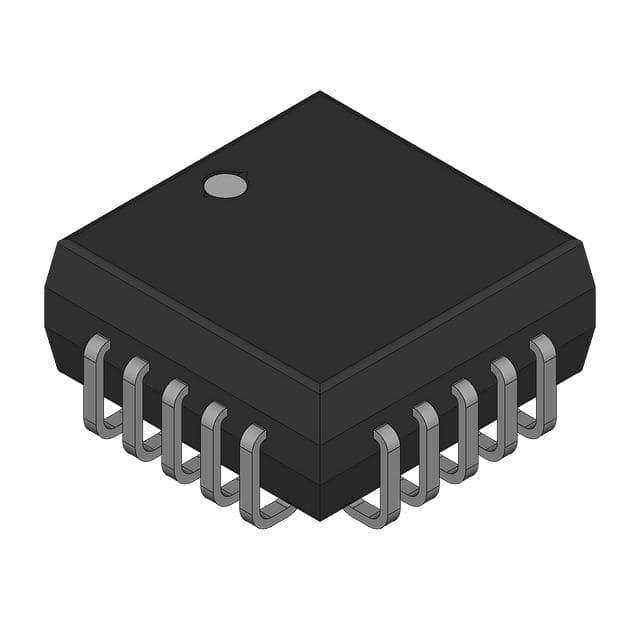

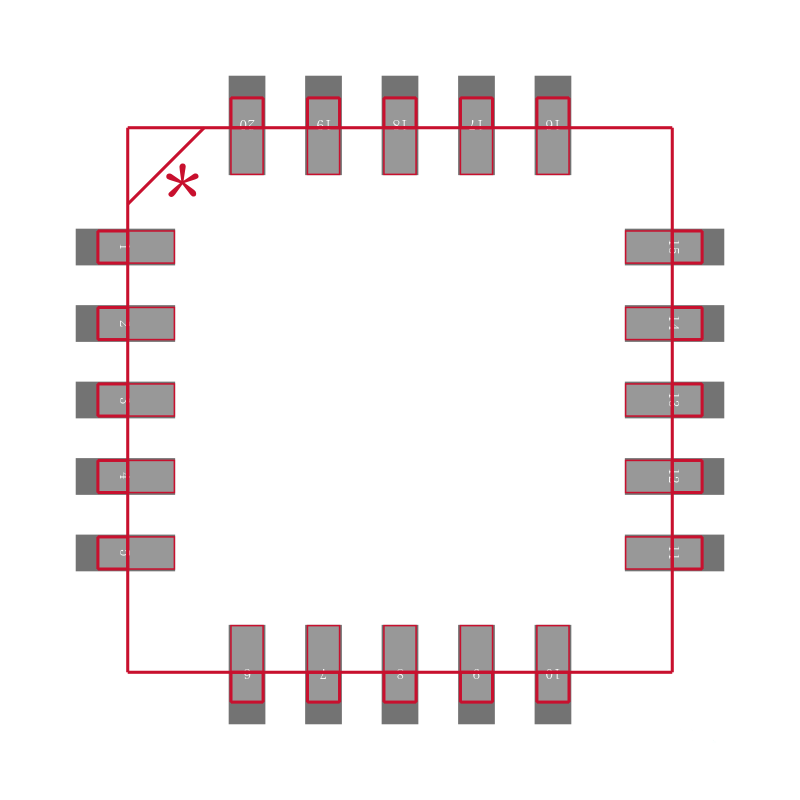

封装 PLCC-20
封装 PLCC-20
工作温度 0℃ ~ 75℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MC10H351FNG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC10H351PG 安森美 | 完全替代 | MC10H351FNG和MC10H351PG的区别 |
MC10H351FN 安森美 | 完全替代 | MC10H351FNG和MC10H351FN的区别 |
MC10H351FNR2G 安森美 | 类似代替 | MC10H351FNG和MC10H351FNR2G的区别 |
