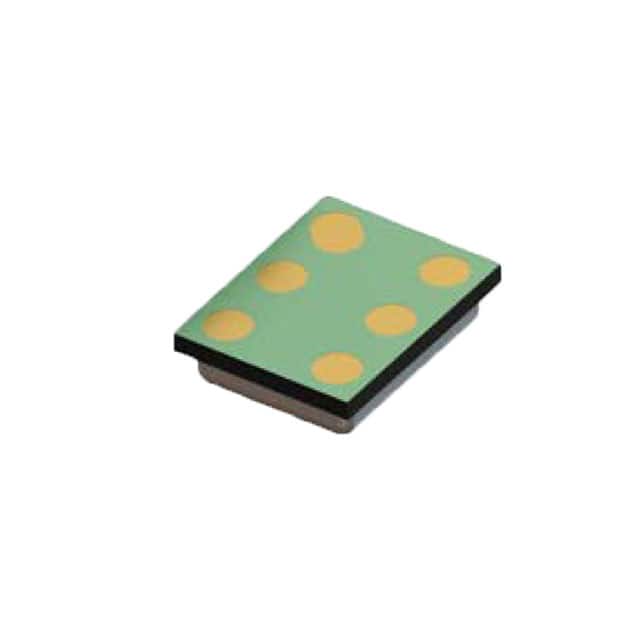

STMICROELECTRONICS MP45DT02 芯片, 传感器, 声频, 120DBSPL, 6HLGA
The is a MEMS audio Sensor Omni-directional Digital Microphone built with a sensing element and an IC interface with stereo capability. The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process to produce audio sensors. The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format. It has an acoustic overload point of 120dB SPL with a best on the market 61dB signal-to-noise ratio and -26dB sensitivity.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 1.64V min
供电电流 650 µA
针脚数 6
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 1.8 V
电源电压Max 3.6 V
电源电压Min 1.64 V
安装方式 Surface Mount
引脚数 6
封装 LGA
长度 4.77 mm
宽度 3.81 mm
封装 LGA
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 计算机和计算机周边, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
