ML-2020/G1AN

ML-2020/G1AN图片1
ML-2020/G1AN图片2
ML-2020/G1AN图片3

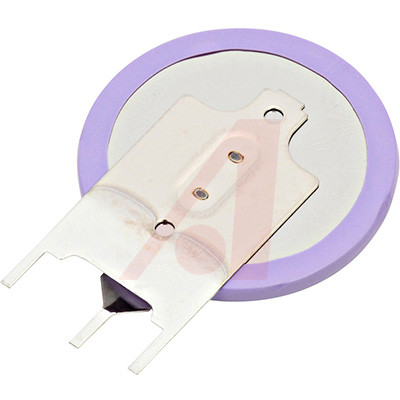

ML-2020/G1AN图片4
ML-2020/G1AN图片5
ML-2020/G1AN图片6
ML-2020/G1AN图片7

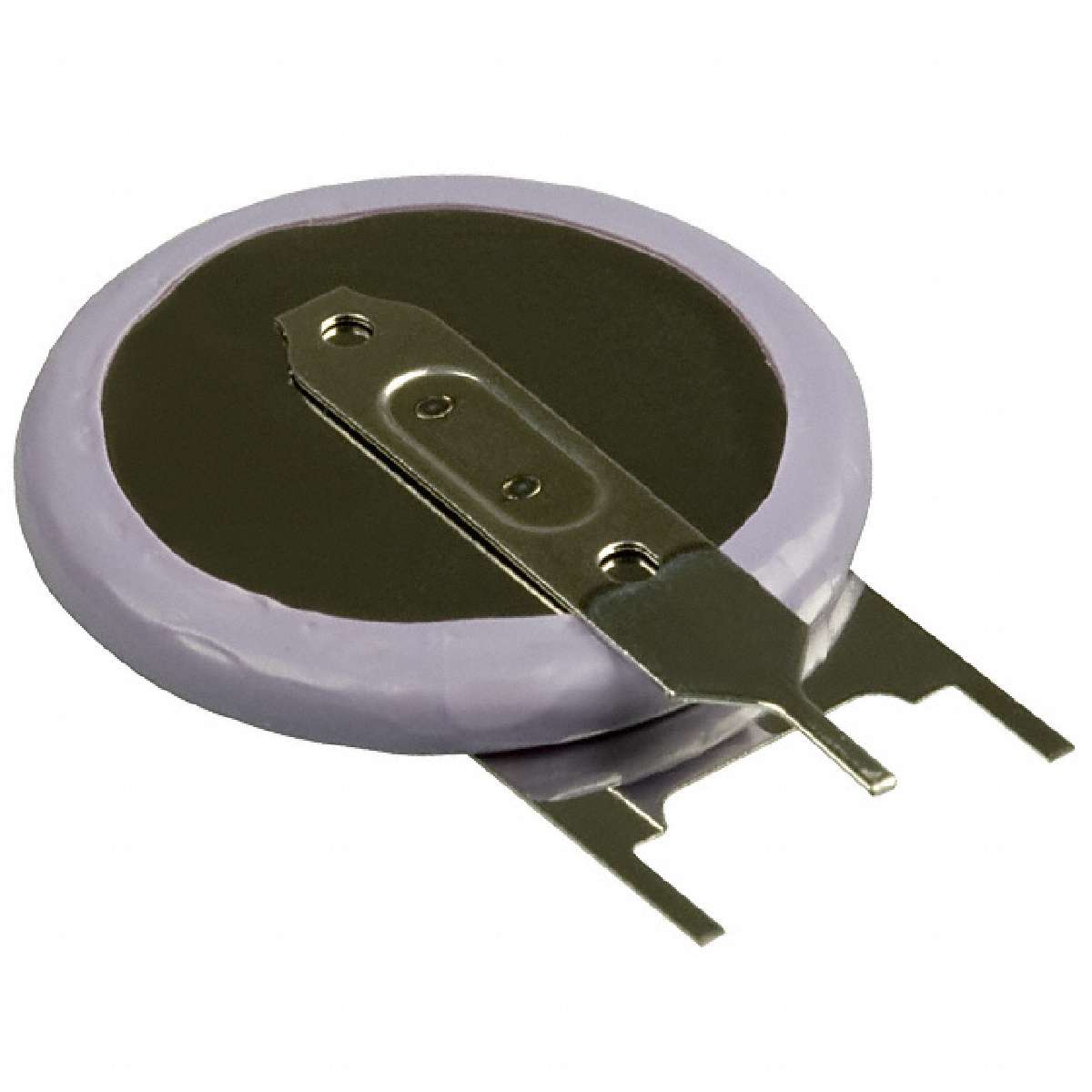

ML-2020/G1AN图片8
ML-2020/G1AN概述

Lithium Battery Coin 3V 45mAh Rechargeable Through Hole

These super compact lithium secondary batteries feature a new configuration in which a manganese compound oxide is used for the positive electrode, and a lithium/aluminum alloy for the electrode MIL Type.


艾睿:
Lithium Battery Coin 3V 45mAh Rechargeable Through Hole


Allied Electronics:
Battery; Rechargeable; Coin/Button; Manganese Lithium; 3VDC; 45mAh; Solder Tab


儒卓力:
**LITH 3V 45MAH 2PINV leadfree**


ML-2020/G1AN中文资料参数规格
技术参数

输出电压 3 V

工作温度Max 60 ℃

工作温度Min -20 ℃

额定电压 3 V

电源电压 3 V

封装参数

引脚数 2

外形尺寸

长度 20 mm

高度 2 mm

物理参数

重量 2.2 g

工作温度 -20℃ ~ 60℃

其他

产品生命周期 Unknown

包装方式 Bulk

符合标准

RoHS标准 Non-Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买ML-2020/G1AN
型号: ML-2020/G1AN
制造商: Panasonic 松下
描述:Lithium Battery Coin 3V 45mAh Rechargeable Through Hole
