MAL203850101E3

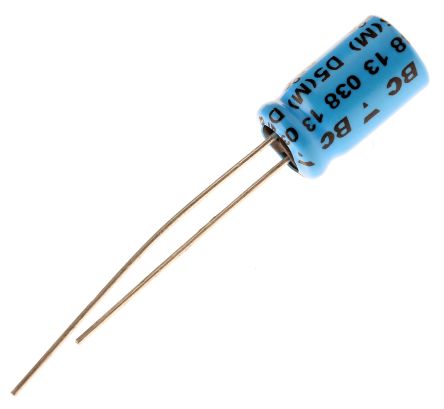

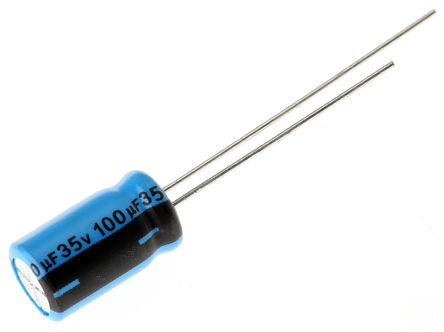

VISHAY  MAL203850101E3  铝电解电容, 微型, 038 RSU系列, 100 µF, ± 20%, 35 V, 6.3 mm, 径向引线

The Vishay 038 RSU series is radial leaded, ultra miniature, standard aluminium electrolytic capacitors. These capacitors are available in standard capacitance value ranging from 2.2µF to 22000µF and ±20% tolerance. Typical applications include audio, video, mobile equipments and general purpose electronic circuits.

.

Nominal case sizes varies from 5mm x 11mm to 18mm x 40mm

.

Voltage rating of 6.3V to 100V

.

Polarized aluminium electrolytic capacitors, non solid electrolyte

.

Cylindrical aluminium case insulated with a blue sleeve

.

Pressure relief for case Ø D >=6.3mm

.

Charge and discharge proof

.

Miniaturized, high CV product per unit volume

.

Endurance test at 85°C is 2000hours case size Ø D = 10mm

.

Operating temperature range -40°C to +85°C
