圆形连接器, MIL-DTL-38999 II 压接, 卡口, MIL-DTL-38999 I系列, 锁紧螺母插座, 6 触点, 压接插座, 卡口, 9-35

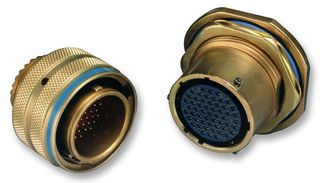

The from is MIL-DTL-38999 Series I jam nut receptacle with 6 contacts. MIL-DTL-38999 Series I connectors are available in a wide range of shell materials and finishes with 48, 500 and 1000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It has an improved sealing around each contact to prevent electrolytic erosion. These connectors are available in 9 shell size from 9 to 25 and are designed to withstand extreme shock, exposure and vibration.
触点数 6
极性 Female
触点电镀 Gold
额定电流 5 A
工作温度Max 200 ℃
工作温度Min -65 ℃
额定电压 400VAC, 500VDC
安装方式 Panel
引脚数 6
高度 26.97 mm
外壳颜色 Olive Drab
颜色 Olive
触点材质 Copper Alloy
重量 17.59281 g
工作温度 -65℃ ~ 175℃
外壳材质 Aluminum
产品生命周期 Active
包装方式 Bulk
制造应用 军用与航空, 工业, 国防
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
军工级 Yes
REACH SVHC版本 2014/12/17
