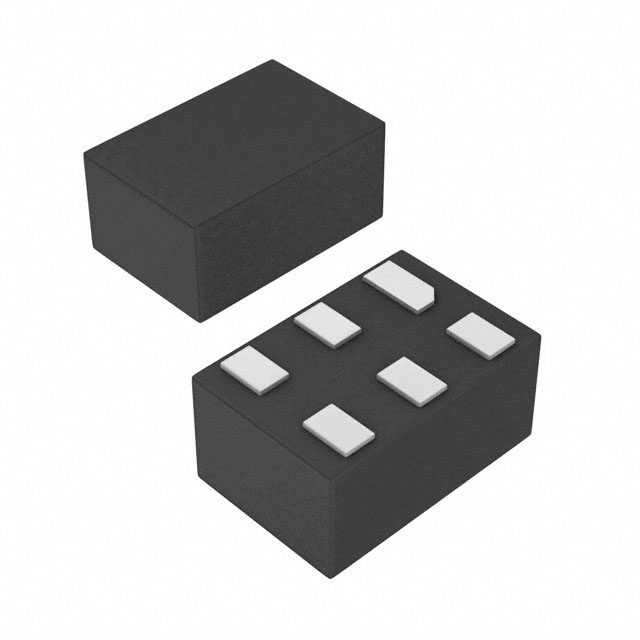

MAXIM INTEGRATED PRODUCTS MAX13046EELT+T 芯片, 逻辑转换器
The is a single channel bidirectional low-level translator in 6 pin µDFN package. This device provides level shifting for data transfer in a multivoltage system. Externally applied voltages, VCC and VL, set the logic level on either side of the device. It utilizes a transmission gate based design to allow data translation in either direction VL and VCC on any single data line. MAX13046 is ideal for data transfer between low-voltage ASICs/PLDs and higher voltage systems.
电源电压DC 1.65V min
电路数 1
通道数 1
针脚数 6
位数 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 6
封装 WFDFN-6
封装 WFDFN-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 便携式器材, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
