MAX14591ETA+T

MAXIM INTEGRATED PRODUCTS  MAX14591ETA+T  芯片, 逻辑转换器

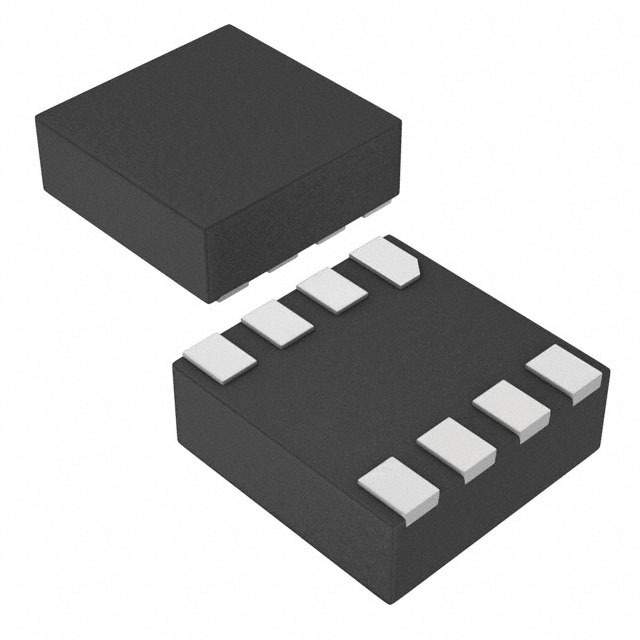

The is a dual channel, high-speed bidirectional level translator in 8 pin TDFN package. The device provides necessary level shifting to allow data transfer in a multivoltage system, externally applied voltages, VCC and VL set the logic levels on either side of the device. A logic signal present on the VL side of the device appears as the same logic signal on the VCC side of the device and vice-versa. The device is optimized for the I²C bus as well as the management data input/output MDIO bus where often high-speed, open-drain operation is required.

.

Supply voltage range is 1.65V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Data rate of 16Mbps

.

Shutdown current of 2.2µA

.

Down to 0.9V operation on VL side

.

Supports above 8MHz push-pull operation

.

Low power consumption
