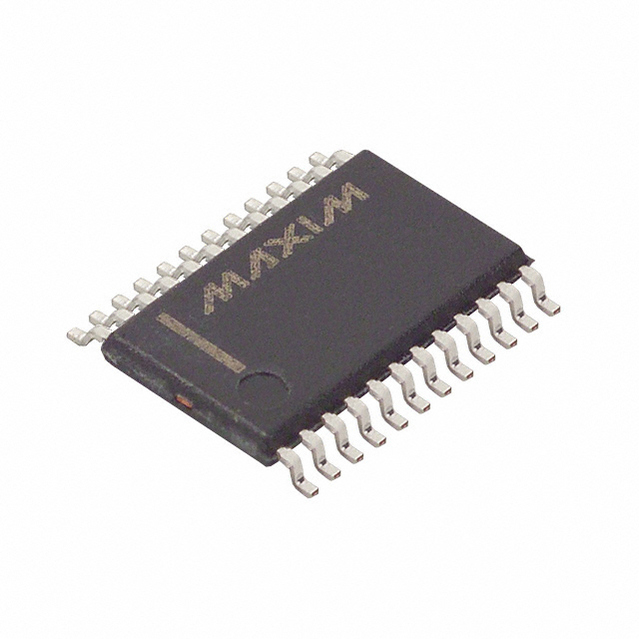

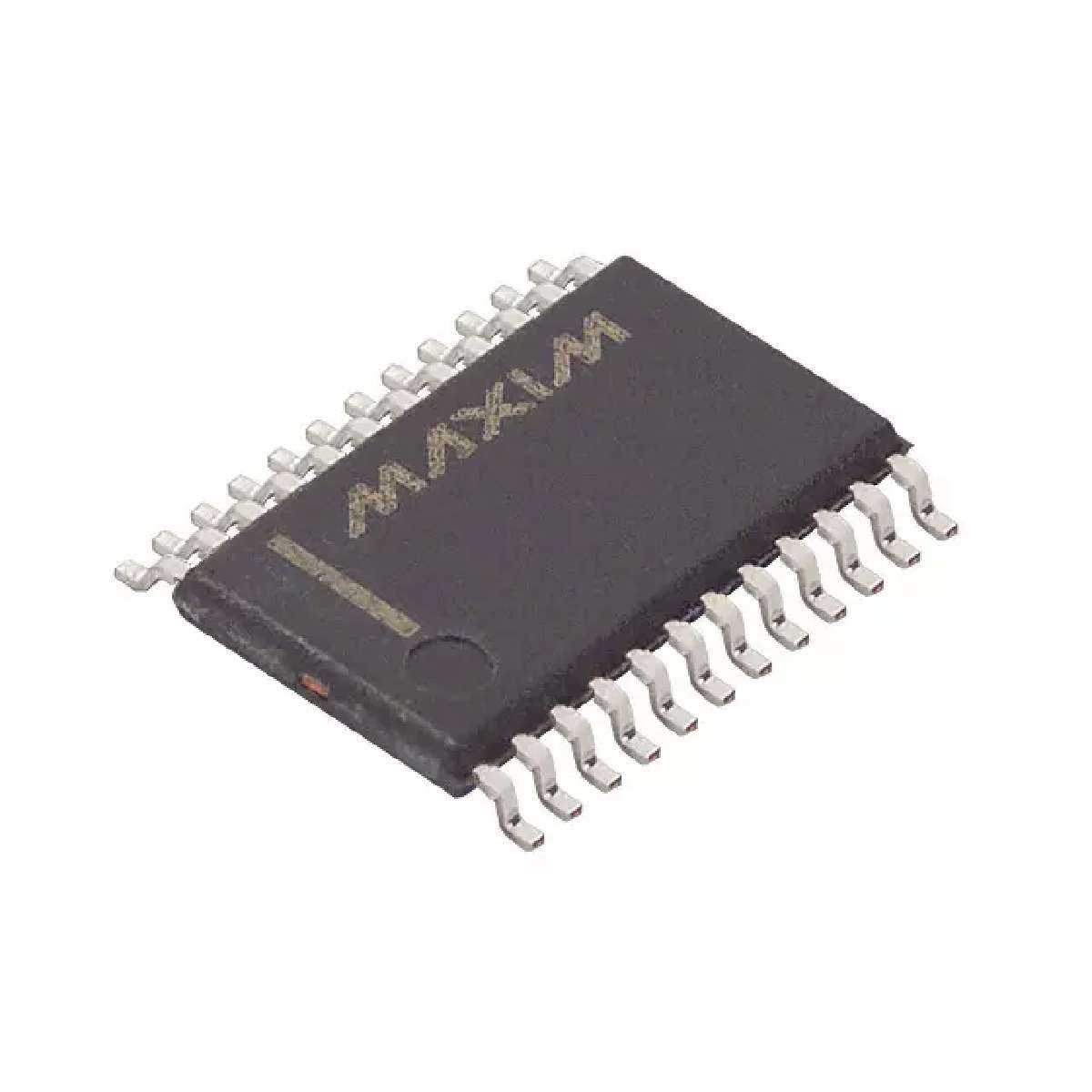

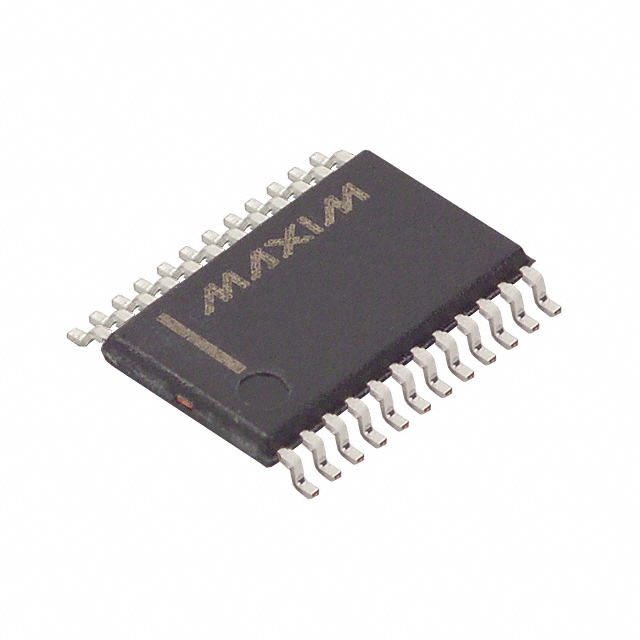

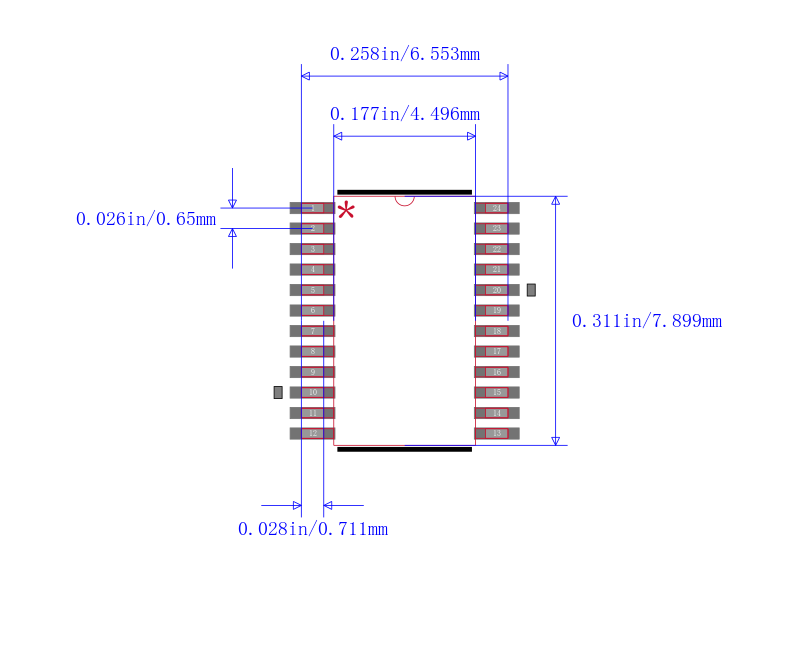

MAX5486EUG+

MAXIM INTEGRATED PRODUCTS  MAX5486EUG+  音频控制器, 立体声, 音量, 2.7V 至 5.5V, 按钮, TSSOP, 24 引脚, -40 °C

The is a stereo volume control with pushbutton interface in 24 pin TSSOP package. The MAX5486 dual 40Kohm logarithmic taper volume control features a debounced pushbutton up/down interface that controls volume and balance in audio applications. Each potentiometer has 32 log-spaced tap points with a buffered wiper output to replace mechanical potentiometers. An integrated bias generator provides the required VDD + VSS/2 bias voltage. It has a mode-indicator LED output and a five integrated LED drivers. Use the MAX5486 digital inputs with momentary contact SPST pushbutton switches. Each input includes internal debounced circuitry and a pull-up resistor to VLOGIC. The SmartWiper control eliminates the need for a microcomputer to increase the wiper transition rate. The accelerated auto-advance feature provides a wiper-changing rate at 4Hz for holding the control input low for more than 250ms and at 8Hz after 500ms and then at 11Hz after 1000ms.

.

Supply voltage range is 2.7V to 5.5V

.

Operating temperature range from -40°C to 125°C

.

Low power wiper buffers provide 0.003% THD+N

.

SmartWiper control advances wiper rate

.

Debounced pushbutton interface

.

Logarithmic taper volume control with 31 2dB steps

.

Nominal temperature coefficient of 35ppm/°C end to end and 5ppm/°C ratiometric

.

Nominal resistance of 40kohm per potentiometer

.

Low 1µA shutdown supply current
