M64X101KB40

VISHAY  M64X101KB40  微调器,24转 100R

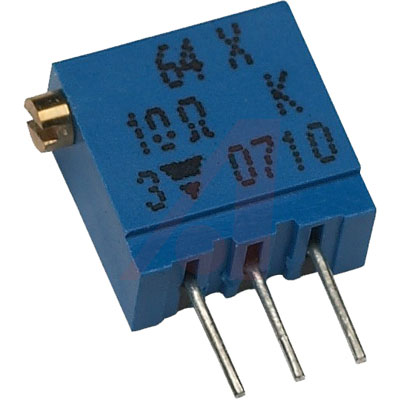

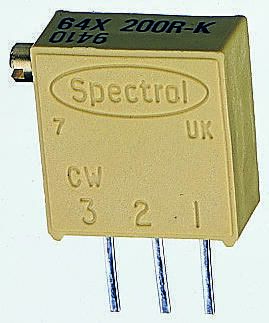

Multi-Turn Cermet Trimmer

3/8" square multi-turn cermet trimmer. 10% resistance tolerance. 0.5 watt at 85°C. 25-turn nominal.

.

* Mechanical Life:** 200 cycles. ** Operating Temperature:** -55°C to +125°C. 0.375" × 0.395" × 0.190" ** Styles:** 64P — Staggered pins; 64W — Inline pins 0.100" spacing; 64X — Inline pins 0.100" spacing; 64Y — Staggered pins; 64Z — Staggered pins.

Excellent Operational stability is provided by the use of a cermet element.
