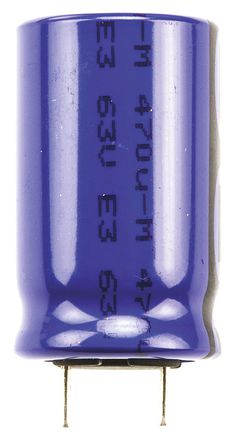

MAL213668471E3

136 系列极化铝电解电容器，非固体电解质超低阻抗和低 ESR 极长的使用寿命：105 °C 时 4000 h 至10000 h 超高可靠性 出色的纹波电流容量 径向引线，圆柱形铝制外壳（带泄压功能），用蓝色套管绝缘 充电和放电保护 应用包括：一般工业的电源（SMPS、直流/直流转换器）、EDP、音频-视频和电信；平滑、滤波和缓冲 Capacitance Tolerance % | 20 ---|--- Operating Temperature °C | -55 to +105 Life expectancy at 105°C | 4000Hrs ### 标准CEI 384-4/CECC 30300### 径向 105°C

The is a radial leaded polarized Aluminium Electrolytic Capacitor feature non-solid electrolyte. The 136 RVI series electrolytic capacitor provides excellent ripple current capability. In general, aluminium capacitor is the most suitable capacitor for addressing requirements such as low and high frequency filtering and energy storage, which demand high capacitance values and power ratings. The device offers high CU/unit cost ratios, is small compared with other technologies and is relatively insensitive to voltage spikes. An electrochemically etched aluminium anode foil forms the first plate of the capacitor. An oxide layer on the etched aluminium foil that forms the dielectric. A paper spacer impregnated with fluid electrolyte in contact with the oxide layer to form the second plate of the capacitor. A second foil that forms the other contact with the fluid electrolyte.

.

Cylindrical case with pressure relief

.

Insulated with a blue sleeve

.

Charge and discharge proof

.

Input buffer provides energy when mains input voltage is too low

.

Input buffer stores energy while AC/DC converter, e.g. PFC controller, adapts to a new power level

.

Input buffer prevents HF switching noise from the DC/DC converter reaching power source

.

Output buffer - Current sink for inductor current to voltage conversion, filtering

.

Output buffer - Buffer energy while DC/DC converter adapts to changed power output

.

Very low impedance and low ESR
