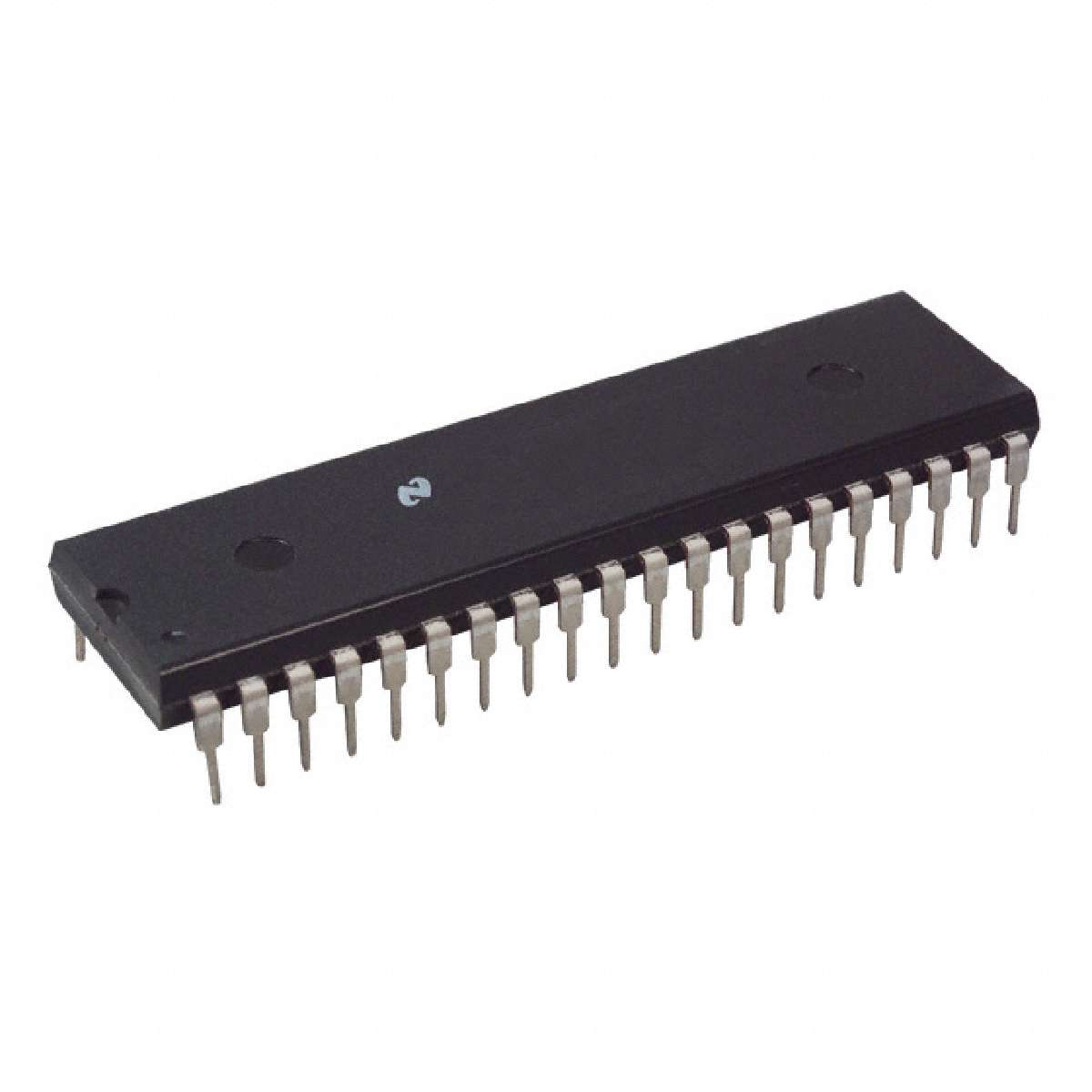

TEXAS INSTRUMENTS MM5452N 芯片, LCD驱动器 33段
The is a Liquid Crystal Display Driver for use with remote displays. The monolithic integrated circuit utilizing CMOS metal gate, low threshold enhancement mode devices. The chip can drive up to 32 segments of LCD and can be paralleled to increase this number. The chip is capable of driving a 41/2-digit 7-segment display with minimal interface between the display and the data source. The MM5452 stores display data in latches after it is clocked in and holds the data until new display data is received.
电源电压DC 3.00V min
输出电压 50.0 mV
输出电流 500 mA
供电电流 40.0 µA
针脚数 40
耗散功率 350 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 350 mW
电源电压 3V ~ 10V
电源电压Max 10 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 40
封装 DIP-40
封装 DIP-40
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MM5452N TI 德州仪器 | 当前型号 | 当前型号 |
AY0438-I/P 微芯 | 功能相似 | MM5452N和AY0438-I/P的区别 |
AY0438/P 微芯 | 功能相似 | MM5452N和AY0438/P的区别 |
