MAX17601AUA+

MAXIM INTEGRATED PRODUCTS  MAX17601AUA+  芯片, 场效应管, MOSFET驱动器

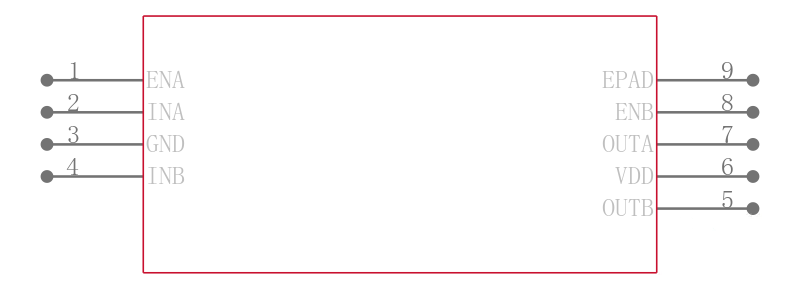

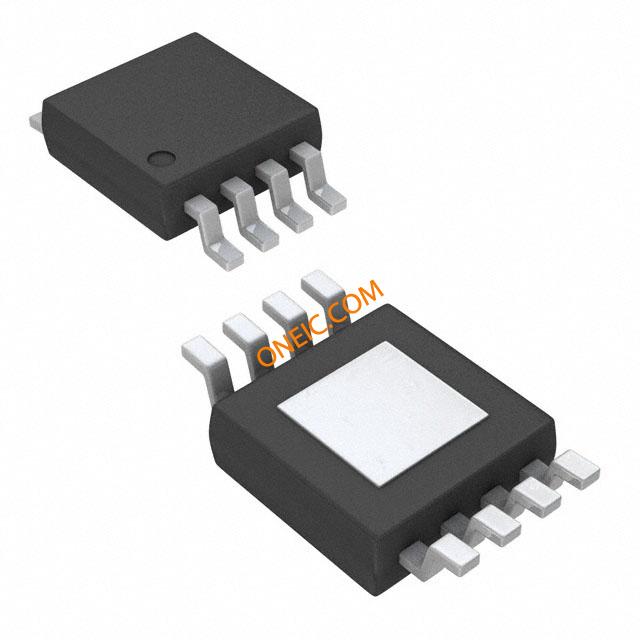

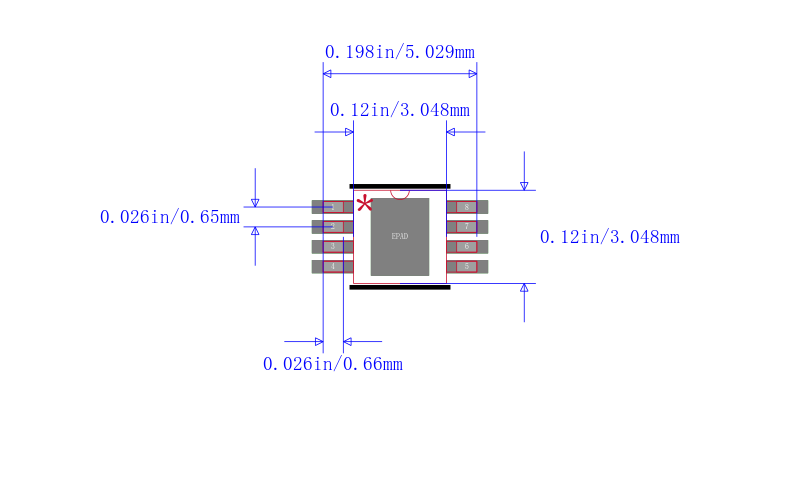

The is a 4A sink/source current, 12ns, dual MOSFET driver in 8 pin µMAX package. This high-speed MOSFET driver is capable of sinking /sourcing 4A peak current and the dual/noninverting configuration of device provide greater flexibility in controlling the MOSFET. It also has an internal logic circuitry that prevents shoot-through during output-state changes. The logic inputs are protected against voltage spikes up to +14V regardless of VDD voltage. Propagation delay time is minimized and matched between the dual channels. The device has very fast switching time combined with short propagation delay makes it ideal for high frequency circuits. This device is used in power MOSFET switching, switch-mode power supplies and DC-DC converters.

.

Supply voltage range is 4V to 14V

.

Operating temperature range from -40°C to 125°C

.

Low propagation delay of 12ns

.

Typical out_rise time is 6ns and typical out_fall time is 6ns with 1nF load at VDD = 14V

.

Typical turn-on delay, turn-off delay time is 12ns at VDD = 14V

.

Parallel operation of dual outputs for larger driver output current

.

TTL or HNM logic-level inputs with hysteresis for noise immunity

.

Low input capacitance of 10pF typ

.

Thermal shutdown protection
