MA240015

100 引脚 PIC24F256GA 通用 插件模块

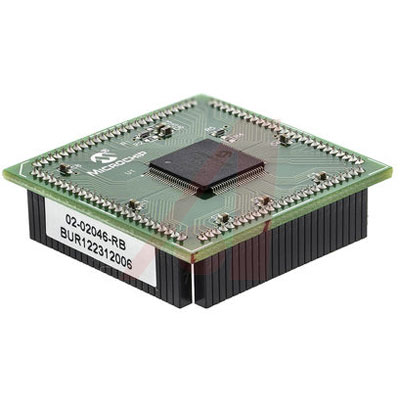

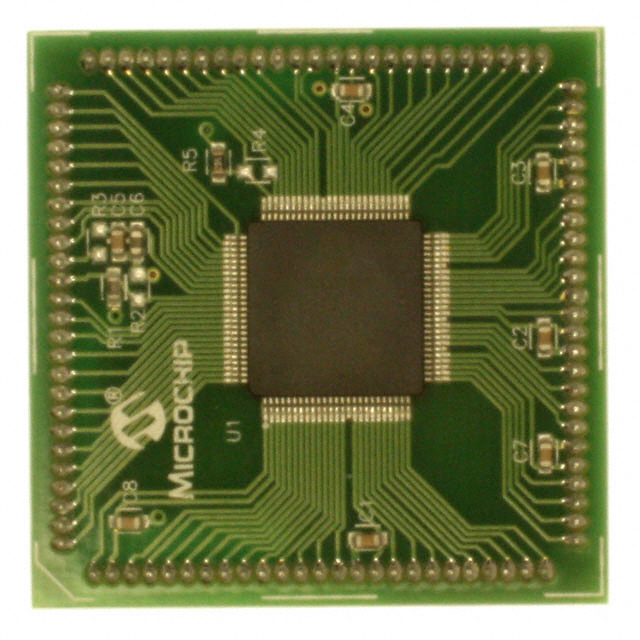

The is an general purpose PIC24FJ256GA110 plug in module for Explorer 16 development board. This plug in module is a small circuit board used with the development board to evaluate PIC24FJ256GA110 microcontroller. The PIC24F microcontroller features cost effective, 16MIPS 16bit MCU performance and many devices with extreme low power technology. This microcontroller incorporate USB OTG, to act as a USB device or host, a charge time measurement unit CTMU. The plug in module plugs into the main processor socket of the Explorer 16 development board DM240001 or DM240002 so that different microcontrollers can be used for prototyping, demonstration or development quickly and easily.

.

Up to 16MIPS performance

.

Nanowatt power managed modes

.

Self reprogrammable under software control

.

JTAG boundary scan and flash memory program support

.

Fail safe clock monitor allows safe shutdown if clock fails

.

UART modules with LIN and IrDA support, four deep FIFO

.

SPI modules with eight deep FIFO

.

I2C modules with master and slave modes

.

PMP, parallel master port, with 16 address lines and 8bit/16bit data

.

Five 16bit timer modules

Works with Explorer 16 development board DM240001 or DM240002, sold separately.
