MAX6007BEUR+T

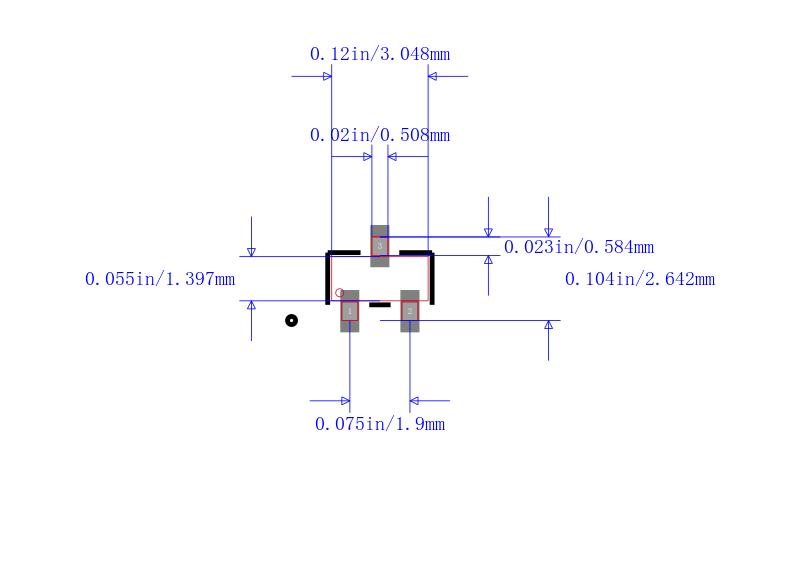

电压参考分流 -固定, 2.048V参考, ± 75ppm/°C, SOT-23-3

The is an ultra-low power precision shunt voltage reference in 3 pin SOT-23 package. This two terminal shunt band gap voltage reference is ideal for space critical and low power applications. The on-chip thin film resistors are laser trimmed to provide initial accuracy of 0.5% and low temperature coefficients of ±75ppm/°C. This device can be used as low power and high precision upgrade to ICL8069, LM385, LT1004 and LM4040 references. It is used in battery powered equipment, precision regulators, meters, A/D and D/A converters.

.

Reverse breakdown voltage of 2.048V

.

Operating temperature range from -40°C to 85°C

.

Ultra-low operating current of 0.5µA

.

Reverse dynamic impedance of 1.8ohm IR = 1.2µA to 2mA

.

Low frequency noise of 50µVP-P IR = 1.2µA, f = 0.1Hz to 10Hz
