MM3Z3V9ST1

齐纳稳压器 Zener Voltage Regulators

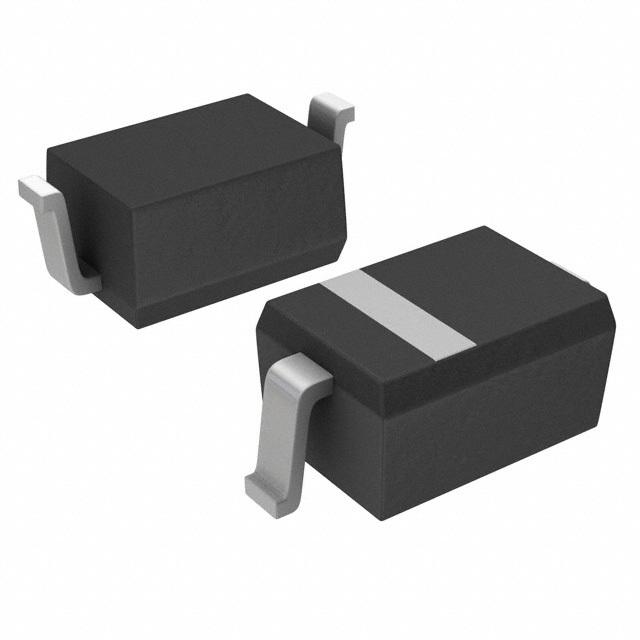

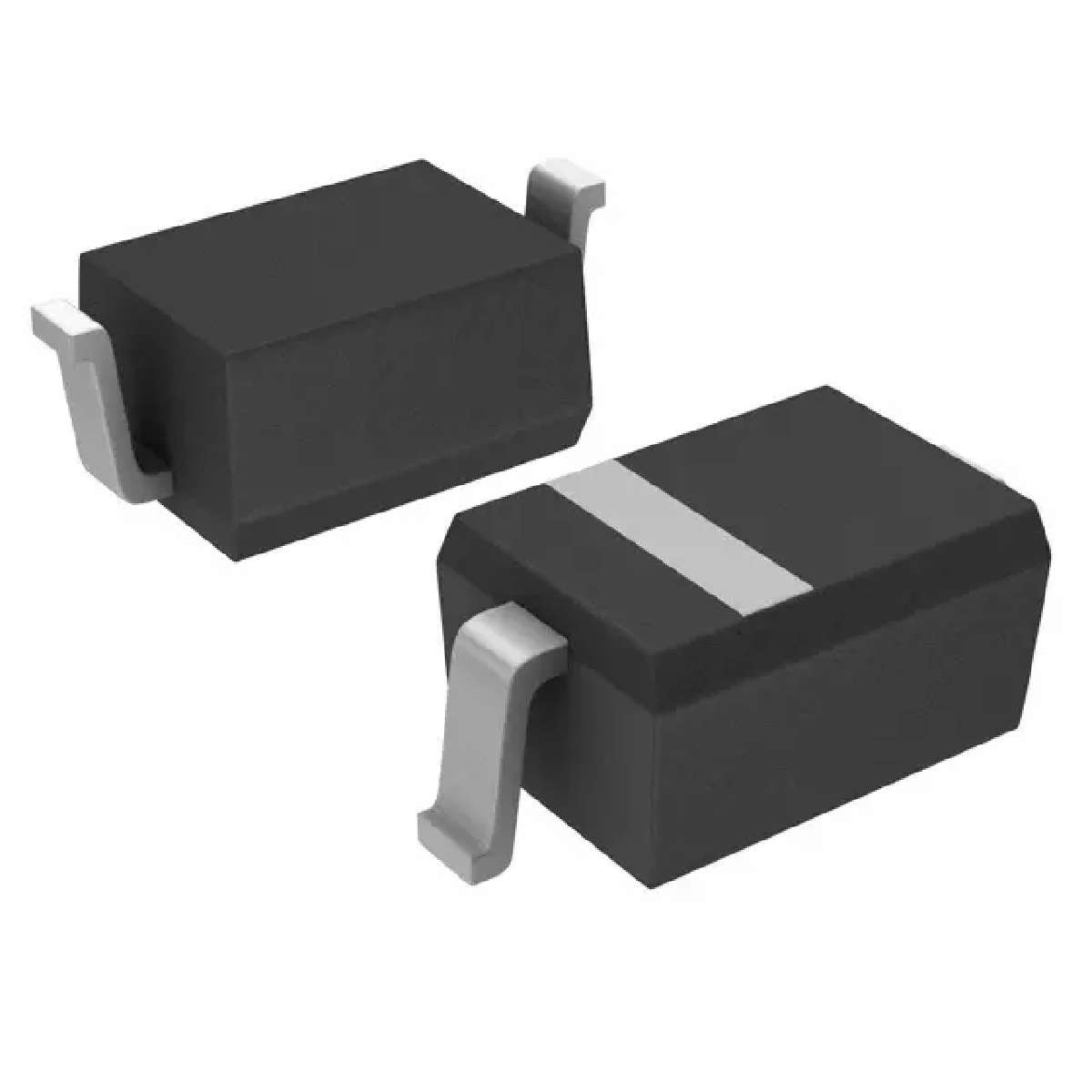

This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 200 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand−held portables, and high density PC boards.

Specification Features:

• Standard Zener Breakdown Voltage Range −2.4 V to 18 V

• Steady State Power Rating of 200 mW

• Small Body Outline Dimensions: 0.067″ x 0.049″ 1.7 mm x 1.25 mm

• Low Body Height: 0.035″ 0.9 mm

• Package Weight: 4.507 mg/unit

• ESD Rating of Class 3 >16 kV per Human Body Model

• Tight Tolerance VZ

• Pb−Free Packages are Available

Mechanical Characteristics:

CASE: Void-free, transfer-molded plastic

FINISH: All external surfaces are corrosion resistant

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds

LEADS: Plated with Pb−Sn or Sn only Pb−Free

POLARITY: Cathode indicated by polarity band

FLAMMABILITY RATING: UL 94 V−0

MOUNTING POSITION: Any
