MAL210437332E3

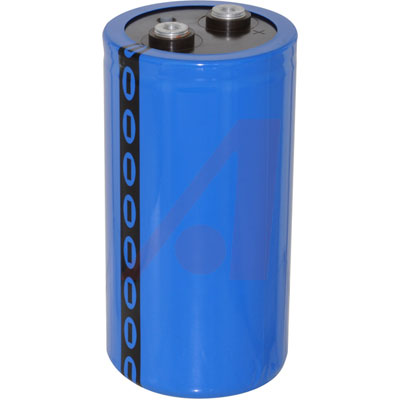

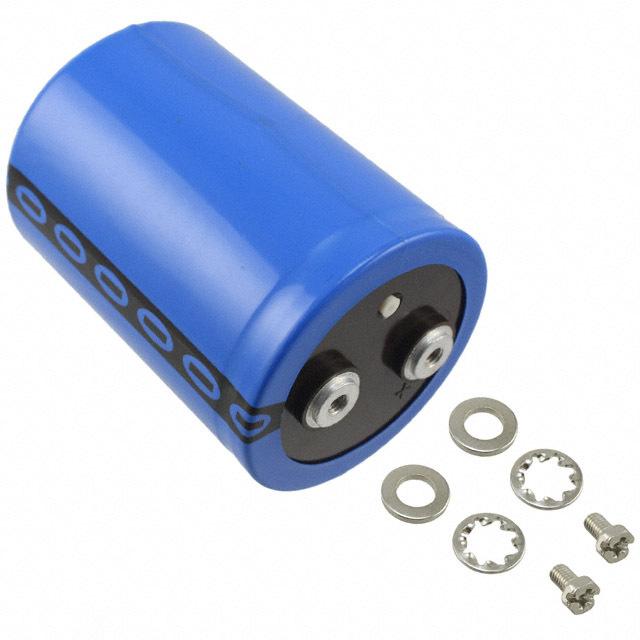

VISHAY  MAL210437332E3  铝电解电容, 螺丝安装, 104 PHL-ST系列, 3300 µF, ± 20%, 450 V, 76 mm, 0.036 ohm

**Features

* **With Long Life of 5000 Hours at +105°C and High Ripple Current to 34.8 A in 11 Case Sizes Ranging From 35 mm By 60 mm to 90 mm by 220 mm

* Polarized Aluminum Electrolytic Capacitors with a Non-Solid Electrolyte

* Available in Standard or Bolt Nut Versions

* Long Useful Life of 5000 Hours at +105°C

* High Rated Ripple Current to 34.8 A at +105°C

* Available in 11 Case Sizes Ranging from 35 mm by 60 mm to 90 mm by 220 mm

* Feature a Cylindrical Aluminum Case Insulated with a Blue Sleeve and Pressure Relief in their Sealing Disc

* High Capacitance/Voltage Combinations, Including 6800 μF at 450 V and 33 000 μF at 200 V, Both in the Large 90 mm by 220 mm Case Size

* Available with 8 mm M5 High-Post Terminals or 13 mm M6 Low-Post Terminals

* Compliant to RoHS Directive 2002/95/EC**

Market Applications

**

* DC Link Capacitors in High-Power Switched Mode Converters and Energy Storage in Pulsed Power Applications

* End Products Include Transport, Medical, and Industrial Equipment, UPS Devices, Welding Devices, Single- and Three-Phase Motor Controls, and Solar and Wind Inverters
