MAX6138AEXR21+T

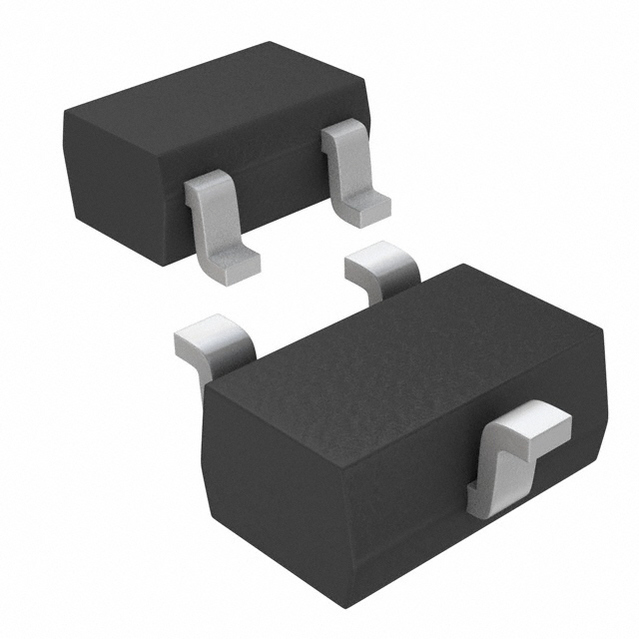

电压基准, 分流-固定, 2.048V, 0.1％, ±4ppm /°C, SC-70-3

The from Products is a shunt voltage reference with multiple reverse breakdown voltages in 3 pin SC-70 package. This precision, two-terminal shunt mode, bandgap voltage reference available in fixed reverse breakdown voltage of 2.048V and ideal for space critical applications. The laser trimmed resistors ensure precise initial accuracy. With a 25ppm/°C temperature coefficient and initial accuracy ranging of 0.1%. The MAX6138 does not require an external stabilizing capacitor while ensuring stability with capacitive loads. Typical applications include portable, battery-powered equipment, notebook computers, cell phones and industrial process control.

.

45µA typical minimum operating current

.

Operating temperature range from -40°C to 85°C

.

2.048V output voltage

.

4ppm/°C reverse voltage temperature coefficient

.

0.3ohm reverse dynamic impedance

.

28µVRMS wideband noise

.

120ppm reverse breakdown voltage long term stability

.

Cell Phones; Industrial Process Controls; Notebook Computers; Portable Battery-Powered Equipment
